HDMI Extender

Support HDMI 1.3 protocol
HDCP 1.2 protocol compliant
Support 3D
Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Signal transmission: Single cat-5e or cat-6(recommended) cable up to 60 meters
Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Audio format support : DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD.
Support up to 5 meters AWG26 cable length between extender and source & sink device

No loss of quality
To Purchase Products
Product Information:

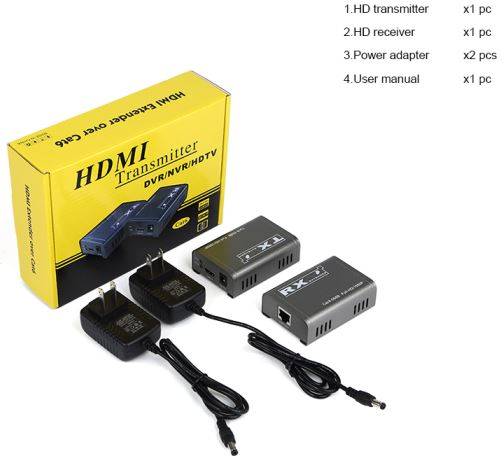

 HDMI Extender over single CAT6 60M



1、 Introduction

Used for a pair extension of this HDMI CAT6 cable to extend HD signal up to 60 meters, and can achieve 1080P, which not only broke the HDMI cable transmission length limitations, but also more convenient and flexible, the majority of customers are more cost savings. The production equipment company providing solutions for the following applications: such as noise, limited transmission distance and safety of the place, data center control, information distribution, conference room presentations and teaching environment and corporate training sites.

Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.



2、FEATURES

Ø    Support HDMI 1.3 protocol

Ø    HDCP 1.2 protocol compliant

Ø    Support 3D

Ø    Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Ø    Signal transmission: Single cat-5e or cat-6(recommended) cable up to 60 meters

Ø    Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Ø    Audio format support : DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD.

Ø    Support up to 5 meters AWG26 cable length between extender and source & sink device

Ø    No loss of quality



3、SPECIFICATIONS

Length of CAT-6

cable between Rx and TX

Up to 60 meters

HDMI Input

24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format input

DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD

HDMI Output

24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format output

DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD

Max transmission bandwidth

5.1Gbps

Input Video signal

 0.5~1.5Volts p-p

Output DDC signal

5Volts p-p (TTL)

Input/output HDMI1.3 cable distance

15m AWG26 HDMI 1.3 standard cable

Max working current

400mA

Power adapter format

Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1 A

Operating Temperature range

 (-15 to +55°C)

Operating Humidity range

5 to 90%RH (No Condensation)

Dimension (L x W x H)

82*57*27(mm)

Weight(RX & TX)

640g





4、 CONNECTING AND OPERATING

1、 Connect one HDMI 1.3 cable up to 15meters between source device and TX Extender.

2、 Connect one HDMI 1.3 cable up to 15meters between sink device and RX Extender

3  Connect single cat-6(recommended) cables up to 60 meters instead of HDMI  cable between TX and RX Extender

4 、Connect 5V power supply to the HDMI CAT6 RX&TX Extender
