100 meters HDMI extender

M-HD100 M-HD100
Mybox--HDMI Over Ethernet is based on TCP/IP standard. It transmit your HD display with the high resolutions max up to 493 feet (150 meters) away from your HDMI or DVI-D source by using one CAT5e/6 cable. With the advantage of TCP/IP standard,you can extend your HD video to multiple displays by using an Ethernet Switch.
To Purchase Products
Product Information:

.Features

1.Extends HDMI up to 100 meters (330ft) for 1080p over one CAT5

2.Follow the standard of IEEE-568B

3.Supports resolutions up to 1080p Full HD

4.Supports Ethernet bandwidth: 100M

5.HDCP compliant

6.Extends by Router connection or LAN connection, cable length requirements are as follows

CAT5     Maximum 80 meters between to Devices

CAT5e   Maximum 100 meters between to Devices

CAT6     Maximum 120 meters between to Devices

.Installation Guide

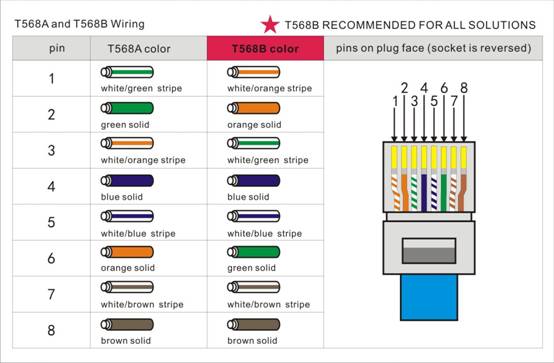

1.Cat5e/6 cable follow the standard of IEEE-568B



2.General Connection

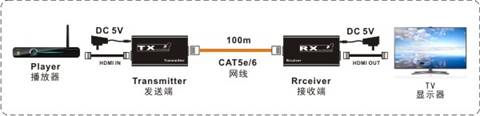

Transmission distance can be up to 100 meters for 1080p over one CAT5

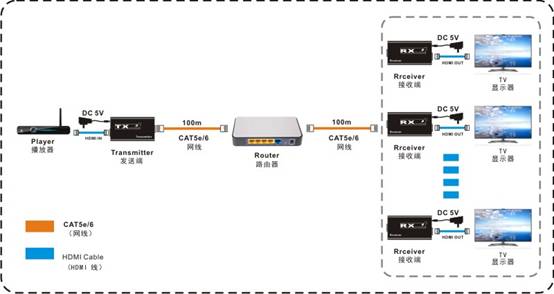

3.Router Connection

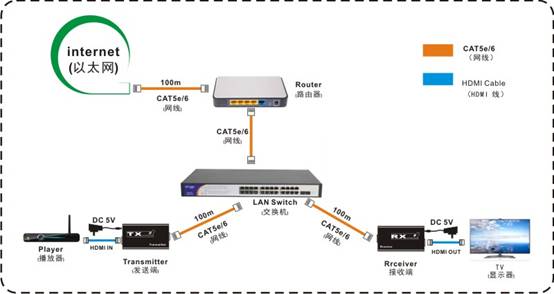

4.LAN Connection

.FAQ

Q: Yellow light of LAN port is flashing but slowly?

A: 1)Check whether HDMI Extender TX and HDMI Extender RX is reversed.

2)Check whether HDMI source device output HDMI signal correctly.

3)Change the HDMI cable of TX.

Q: Yellow light of LAN port is flashing quickly but no display?

A: 1)If HDMI source is graphics card, please set the resolution to be supported by display device.

2)Check whether HDMI cable of RX is well connected.

3)Change the HDMI cable of RX.

Q: Yellow Led light of LAN port is not light?

A: 1)Check connection of network cable.

2)Network cable is too long.

Q: Abnormal color display or flashing after all the devices are well connected?

A: 1)Please press reset button of HDMI extender.

2)Follow the standard of IEEE-568B.

.Technical Specifications

Power Supply

2pc   DC 5V/1A

Supports Resolutions

480i@60Hz480p@60Hz576i@50Hz

576p@50Hz720p@50/60Hz

1080i@50/60Hz1080p@50/60Hz

Working Temperature

-10°C ~60°C

Link Connector (Sender/Receiver)

UTP/STP  CAT5e/6

Power Consumption

3W (max) each

Relative Humidity

20%~90%

Dimensions

110*58*26mm

Weight

324g
