300m HDMI Extender over Coaxial 【M-HD300】
2. MAX 12V/1A power adapter
3. Using lossless shallow compression technology
4. Support Intermediate Multi-Node Access
5. Multilevel Lightning Protection
6. The MAX transmission rate of 750 Mbps
7. Support HDCP1.2
8. Plug and play
1. Introduction
This HDMI extender transmit long-distance over one coaxial. It can transmit signals with a maximum transmission rate of 750 Mbps. This product use lossless shallow compression technology, which can effectively ensure the signal transmission without distortion.
The radio frequency signal is based on the principle of broadcasting transmission, using different carriers, can transmit 100 HD image signals on a single transmission cable. Point-to-point transmission does not need repeater, and the transmission distance can be up to 300 meters (Distance may be affected by the cable quality and length). It can use TV transmission branch, distributor, amplifier and other equipment to set up the transmission network, perfectly solve the actual requirements of various high-definition transmission.

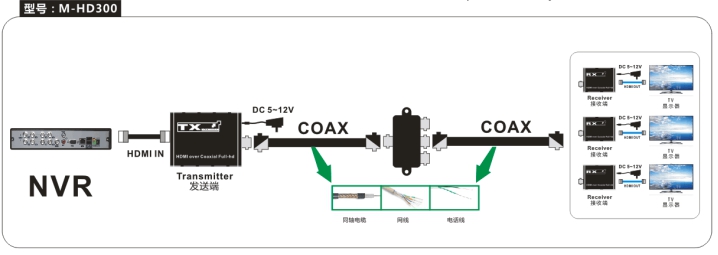

It can realize synchronous playing of 300 meters long distance video with more receivers over TV distributor, 200 meters coaxial can be connected from transmitter to distributor, and 100 meters coaxial can be connected from receiver to distributor.
2. Features
1. The MAX distance can be up to 300 meters
2. MAX 12V/1A power adapter
3. Using lossless shallow compression technology
4. Support Intermediate Multi-Node Access
5. Multilevel Lightning Protection
6. The MAX transmission rate of 750 Mbps
7. Support HDCP1.2
8. Plug and play

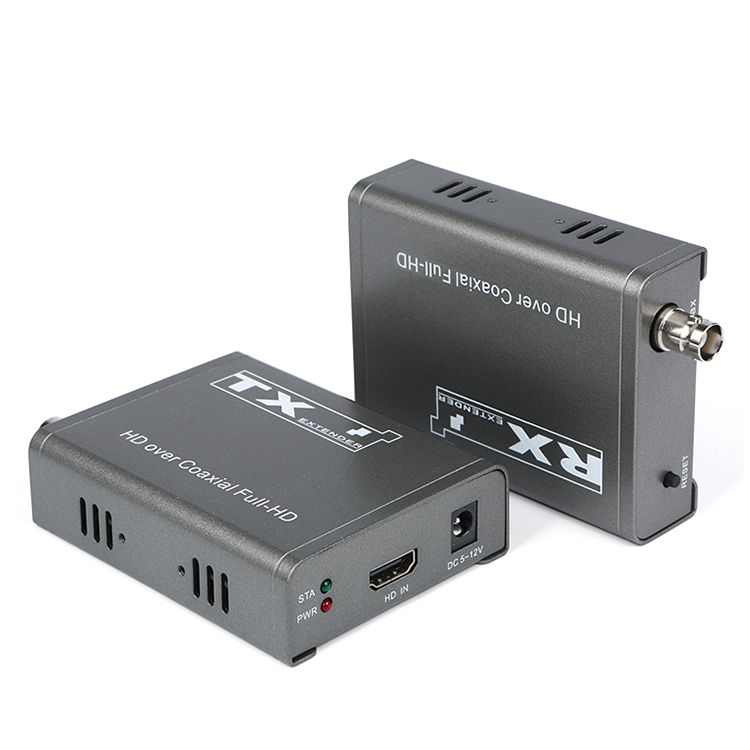

3. Product interface pictures
TX
RX
|
Port name |
Description |
|
HDMI IN/OUT |
HDMI signal input/output |
|
Coaxial |
Coaxial connect port(if using Cat5/6, can use the adapter) |
|
DC/5-12V |
Power adapter socket |
|
RESET |
Press for 5 seconds to restore system setting to factory default |
|
LED indicator |
Description |
|
PWR |
unit power indicator |
|
STA |
HDMI signal indicator |
4. Specification
|
Standards |
HDCP1.2 |
|
Resolution |
1080P@60Hz/1080P@50Hz/1080P@30Hz/720P@60Hz/720P@50Hz/480P@60Hz |
|
Connector |
HDMI-A， BNC Coaxial |
|
Driver |
No need to install driver |
|
Transmission distance |
300m(Coax 75-3: 100m；Coax 75-5: 300m) |
|
Power supply |
DC 5-12V/1A |
|
Power dissipation |
3W |
|
Temperature |
Operating: -20℃ ~ +70℃ |
|
Humidity |
Operating: 20% ~ 90%RH(non-condensing) |
|
Dimension |
95*73*26mm |

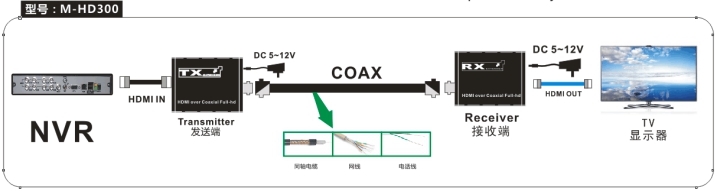

5. Installation Process:
1. Connect the HDMI input port of transmitter and the HDMI output port of the video source with HDMI cable(such as DVR/NVR/PC)
2. Connect the HDMI output port of receiver to the display device with HDMI cable(such as HDTV)
3. Connect the transmitter Coax port to the receiver Coax port using a single Coaxial cable(if using Cat5/6, can use the adapter)
4. Connect the provided power supplies to the power socket of the transmitter and the receiver

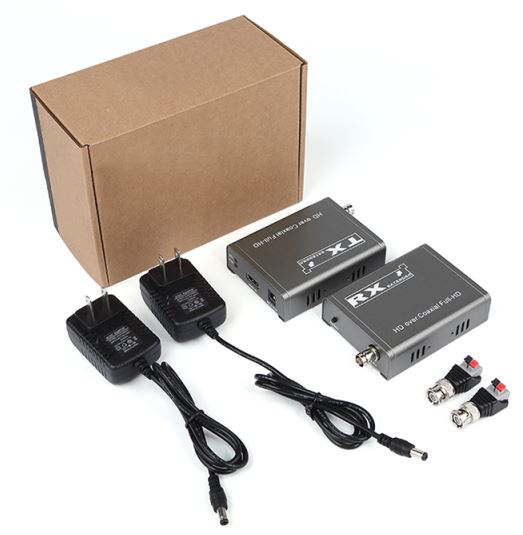

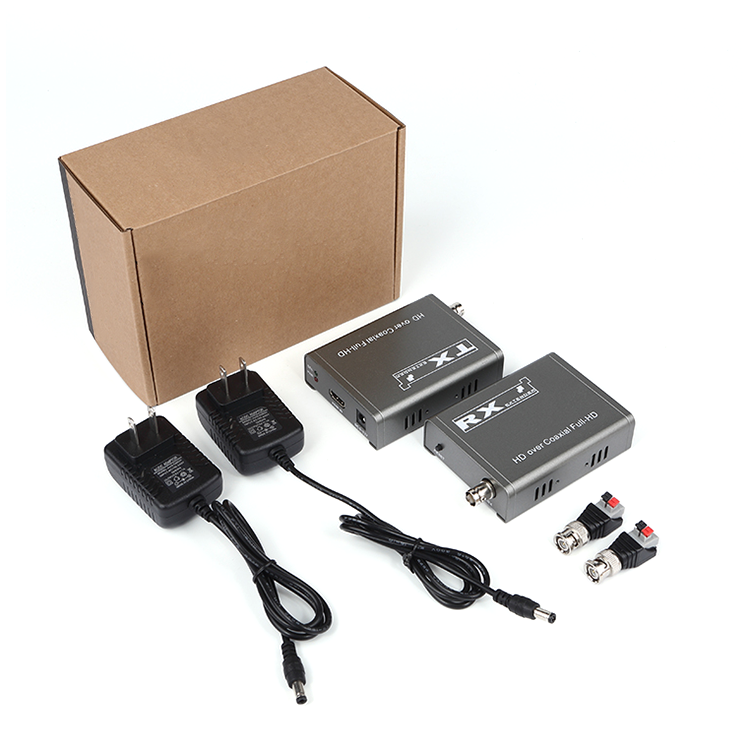

6. Package
1. HDMI transmitter x1 pcs
2. HDMI receiver x1 pcs
3. Power adapter x2 pcs
4. BNC-2-bit twisted-pair adapter x2 pcs
5. User manual x1 pcs
