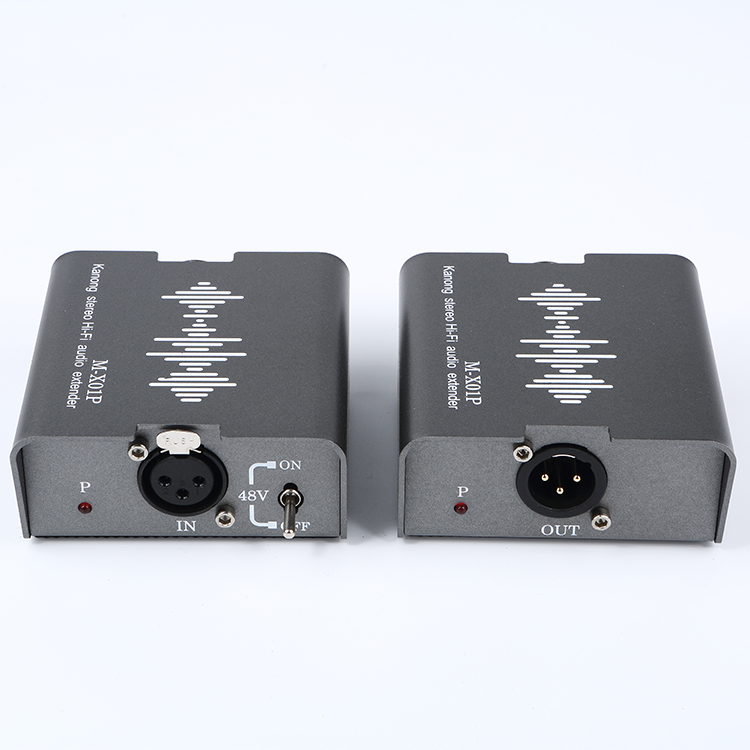

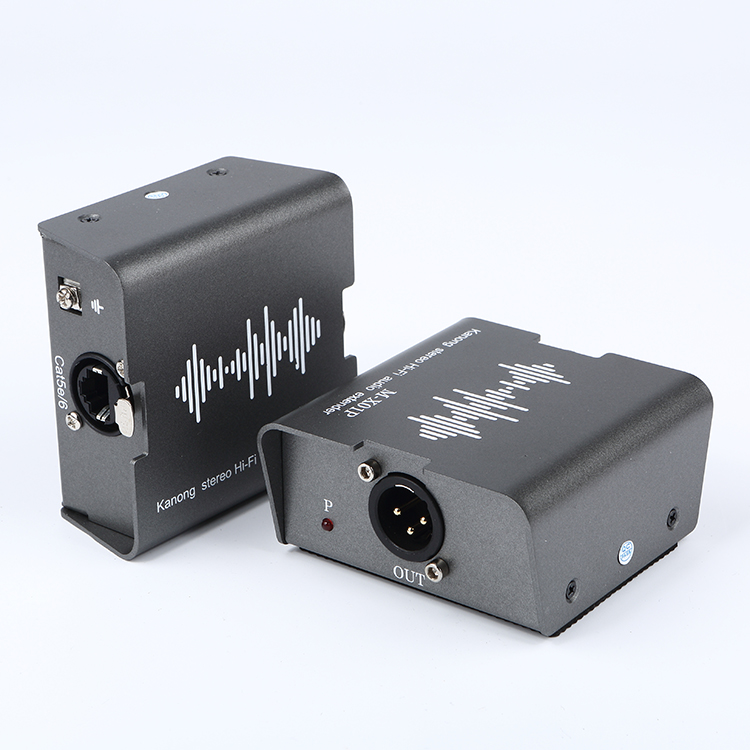

One Way Cannon Audio Transmitter【M-X01P】

Production introduction：

M-X01P Cannon Audio extender is a unbalanced audio signal twisted pair extender, the product has high fidelity isolation and anti-interference capability, and it supports passive or active microphone (48V Phantom electricity synchronization) transmission. This product can be applied to high fidelity audio equipment, such as game player, set-top box, HI-FI home theater, video conference, public video broadcasting system, multimedia education, medical care, military field, and flat video media advertising transmission demonstration.

The product is used especial balance characteristic impedance conversion transmission and audio analog audio spread spectrum isolation technology, it has anti-interference and EMI capabilities.

It can solve the problems of super length audio input line or ground electricity position which caused by equipment distortion and audio noise, and elimination of audio background noise, the said products are suitable for all kinds of different distance extender applied area.

Products characters：

※ One way Cannon MIC audio twisted pair transmission.

※ Unbalanced switching transmission mode is adopted with strong resistance to common mode interference.

※Support passive or active microphone (48V magic synchronization), transmission distance up to 268m.

※Special audio spread spectrum isolation technology is adopted.

※Broadcast level hi-fi ground loop,ground loop audio isolation.

※No power required, works continuously all day, stable and reliable performance

※Audio matrix switcher ,audio distributor ,audio distribution amplifier, booster, sound, microphone, home theater, DVD disc, video recorder, camera, mixer device, and other commercial or consumer analog devices.

*NOTE: 48V Phantom electricity dialing switch state; Wrong use ways will be able to destroy mic-phone, The equipment does not have 48V

Phantom electricity supply; Only support 48V phantom electricity transmission.

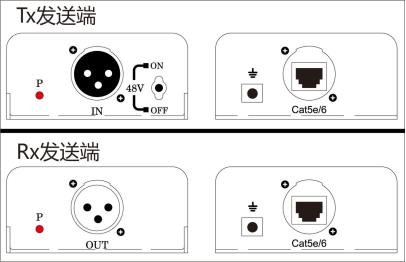

Port Diagram：

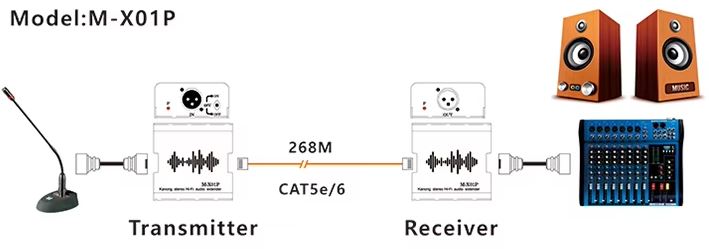

Typical Applications:
