4K-HDMI Extender over Cat6 【M-HK100B】

1. Support the Max transmit distance: 1080P up to 100M，4K*2K@30Hz up to 70M 2. Support the highest resolution up to 4K×2K@30Hz 3. Support HDMI 1.4 version 4. Support IR transmission 5. Support loop output 6. High compatibility, can auto-match source and display device 7. Built-in automatic adjustment system, make the image smooth, clear and stable 8. Built-in ESD protection system 9. Simple to install, plug and play

Product Information：

1. Introduction

This 4K-HDMI extender can transmit high definition signal of Blue-Ray DVD player, PC and other equipment via Cat5e/6 cable(recommended), support the highest resolution of 4K×2K, 1080P/4K transmission distance up to 100 meters, support infrared transmission, support loop output. The product is stable, east to install, and highly practicable, it can be used in major projects, meeting halls and other places.

2. Features

1. Support the Max transmit distance: 1080P/4K up to 100M

2. Support the highest resolution up to 4K×2K@30Hz

3. Support HDMI 1.4 version

4. Support IR transmission

5. Support loop output

6. High compatibility, can auto-match source and display device

7. Built-in automatic adjustment system, make the image smooth, clear and stable

8. Built-in ESD protection system

9. Simple to install, plug and play

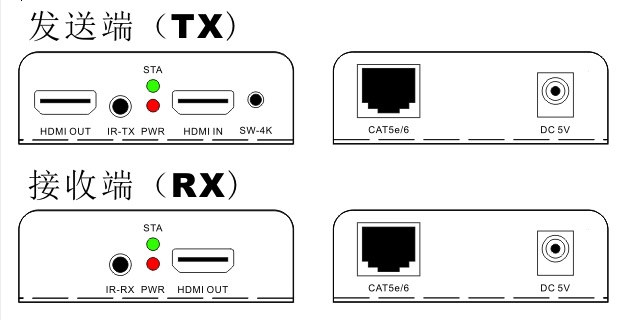

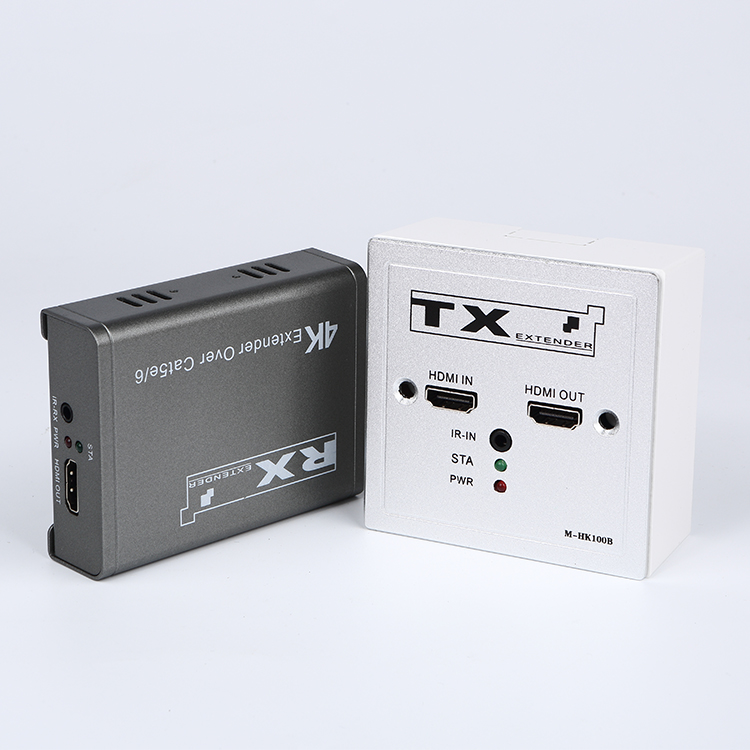

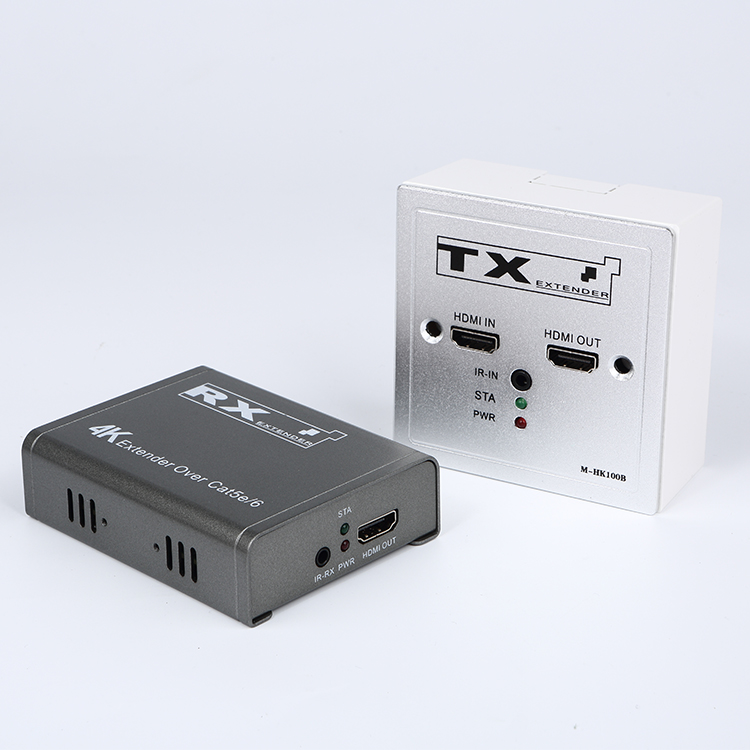

3. Product interface pictures

Port name	Description
HDMI IN/OUT	HDMI signal input/output
Cat5e/6	RJ45 port connect cat5e/cat6
IR TX/RX	IR signal input/output
SW-4K	Switch 4K
DC/5V	Power adapter socket
LED indicator	Description
PWR	unit power indicator
STA	HDMI signal indicator

4. Specification

Parameter		Description
Video	Standards	HDMI 1.4； HDCP 1.4
	Maximum pixel clock	340MHz，digital
	Maximum data rate	10.2Gbps
	Max Resolution	3840×2160@30Hz（4K@30Hz）
	Connector	HDMI-A
	Impedance	100Ω
IR	Interface	3.5mm seat
	Signal direction	Unidirectional
	IR frequency	30-60KHz
UTP	Interface	RJ45
UTP	Transmission distance	1080P/4K: 100M
Other	Power supply	The power adapter: DC 5V/1A
	Power dissipation	MAX 3W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	957326mm

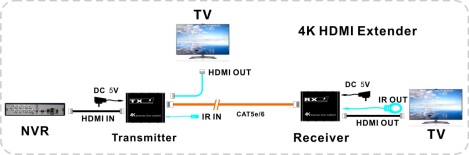

5. Installation Process:

1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver

2. Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source

3. Connect the HDMI output port of receiver to the display device with HDMI cable

4. Connect the transmitter RJ45 port to the receiver RJ45 port using a single CAT5e/6 cable.

6. Package

1. HDMI transmitter x1 pcs

2. HDMI receiver x1 pcs

3. Power adapter x2 pcs

4. IR TX/RX terminal x 1 set

5. User manual x1 pcs
