HDMI to HDMI+Audio Converter
【M-HHACon】

1.0 Introduction

The MINI HDMI2HDMI+Audio Converter increases the analog stereo audio output on the basis of the HDMI signal transmission.The analog stereo audio signal can be easily connected to the earphones or audio power amplifier.

1.1 Features

1.No need to install drivers, portable, flexible, plug and play.

2. Low power, No power adaptor.

3.HDMI is compliant with HDMI1.3.

4.High bandwidth capability support up to

1920x1080@60H2

2.0 SPECIFICATIONS

1. Input ports:1 x HDMI.

2.Output ports: 1x HDMI,1x 3.5mm Phone Jack.

3.Dimensions(mm):60(D)x 5(W)x 20(H)

4. Wight (g): 40

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1)Main unit(HDMI TO HDMI AUDIO Converter)

2) User Manual.

4.0 PANEL DESCRIPTIONS

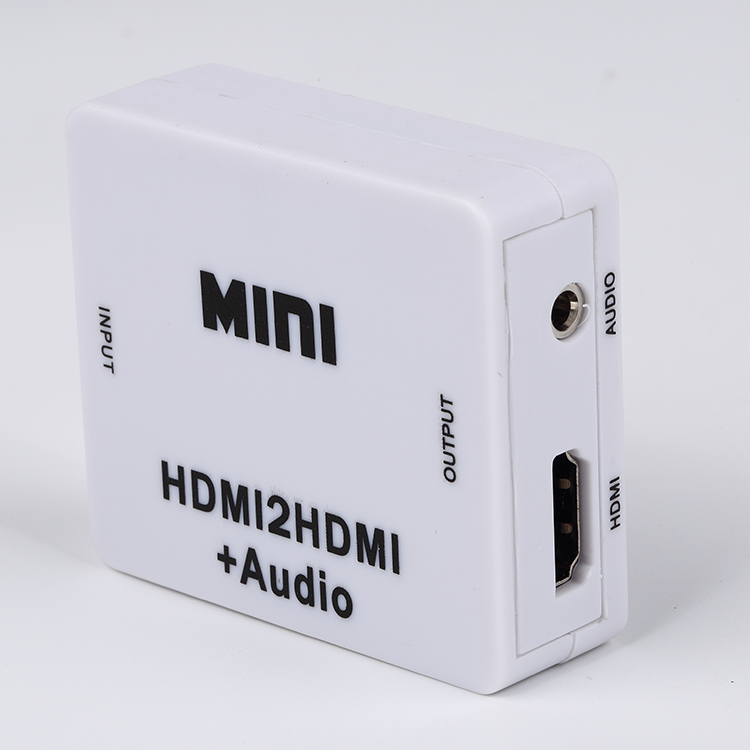

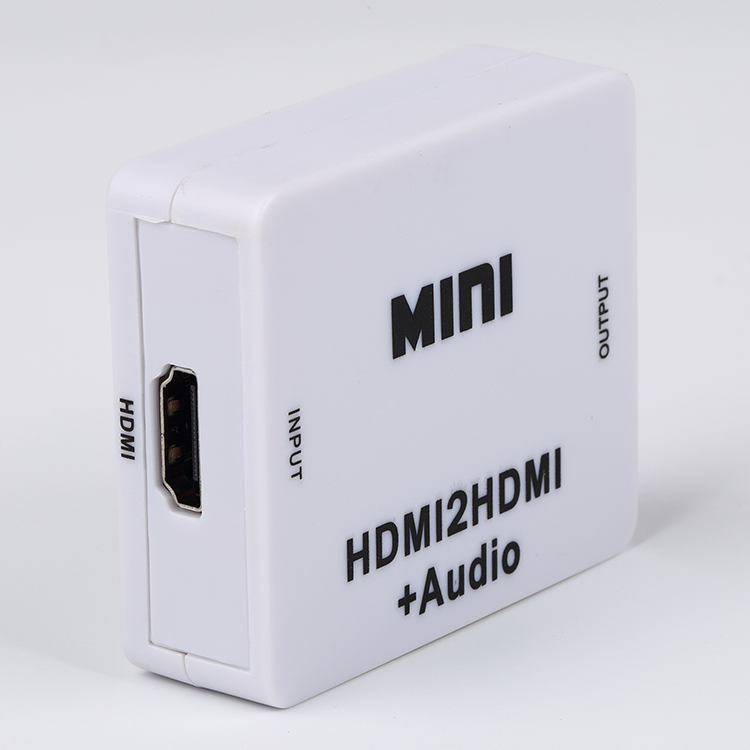

Please study the panel drawings below and become familiar with the signal input(s), output(s)and power requirements.
