4K 20KM HDMI+KVM Fiber Extender【M-HFK20U】

1.HD video signal resolution can reach up to 4K@60Hz (4:4:4)
2.Transmit HDMI video and audio signals over long distances through optical fiber up to 20KM
3.Suppor KVM, use keyboard and mouse to operate remote devices (or RS232 function is optional)
4.Support one-way embedded independent audio input and output
5.Support loop output
6.Support HDMI 2.0 and HDCP 2.2 standards
7.Support EDID learning, improve compatibility, match signal sources and display devices for automatic storage
8.Built-in automatic equalization system, the picture is smooth, clear and stable
9.Built-in ESD electrostatic protection circuit to protect system safety in all aspects
10.Support 5-12V power supply
To Purchase Products
Product Information:

I. Introduction
  M-HFK20U transmits high-definition video signals over long distances through optical fiber, supports KVM or RS232 function, and can operate remote devices using keyboard and mouse or RS232. This product transmits HDMI high-definition audio and video signals with resolution of 3840*2160@60Hz over 20KM without compression through 10 Gigabit optical fiber, it supports KVM signal or RS232(optional), independent audio transmission, and supports local loop output, which reduces costs for users while ensuring signal stability. This model has a built-in learning EDID function, which greatly improves the compatibility of the device.


  This equipment has long transmission distance, low cost of use, easy installation, good compatibility, and is a stable and efficient transmission method. It is widely used in audio and video transmission of high-definition conference systems, high-definition film and television shooting, high-definition teaching systems, high-definition digital advertising, etc.



II. Features:
*Transmit HDMI video and audio signals over long distances through optical fiber, up to 20 kilometers;
*HD video signal resolution can reach up to 4K@60Hz (4:4:4);
*Support KVM, use keyboard and mouse to operate remote devices (or RS232  function is optional);
*Supports one-way embedded independent audio input and output;
*Supports loop output;
*Support HDMI 2.0 and HDCP 2.2 standards;
*Support EDID learning, improve compatibility, match signal sources and display devices for automatic storage;
*Built-in automatic equalization system, the picture is smooth, clear and stable;
*Built-in ESD electrostatic protection circuit to protect system safety in all aspects
*Support 5-12V power supply

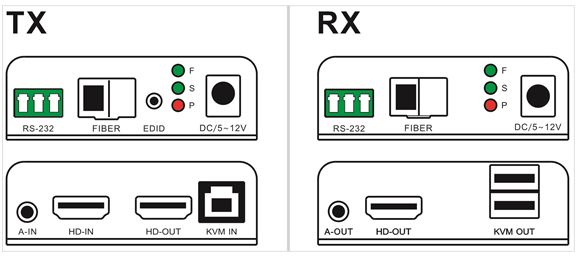

III. Product interface pictures





Port name

Description

HDMI IN/OUT

HDMI signal input/output

KVM IN/OUT

KVM signal input/output

Fiber

Fiber InterfaceLC

Audio

3.5mm audio input/output

Green terminal

RS232 input/output

DC/5~12V

Power adapter input

LED indicator

Description

P

Power light

S

OnWorking),offNo input/output

F

Flashing quickly (communication in progress), off (fiber optic not communicating)































IV. Specification



Description

Parameter

Video

Standards

HDMI 2.0; HDCP 2.2

HDMI pixel clock

340MHzall-digital

HDMI port bandwidth

total bandwidth 10.8Gbps

Resolution

3840X2160@60Hz(444)

backward compatibility

Video port

HDMI-A Port

HDMI port Impedance

100Ω

Mouse/keyboard

Interface

PCUSB-B Receptacle

Keyboard and mouseUSB-A standard Port

Audio

Interface

3.5mm Stereo audio socket

Audio format

44.1K,48K,96K,176K,192K

Signal Type

Stereo

Fiber optic

Fiber Type

Single fiber single mode

Dual fiber single mode

Wavelength

TX-1330nm

RX-1270nm

TX/RX-1310nm

Fiber Interface

LC

Transmitted optical power

-60dBm

Transmission distance

20KM

Transmission rate

10Gbps

Laser type

DFB CWDM

Other

Power supply

Power AdapterDC5~ 12V

Power dissipation

MAX 10W

Temperature

-40 ~ +80

Humidity

5% ~ 90%

Dimension

94*72*25mm

Warranty

1 year free warranty

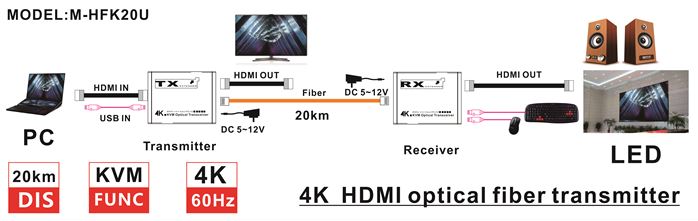

V. Installation Process:

1. Connect the HDMI signal source to the HDMI input port of the TX
2. Connect the HDMI OUT of the RX  to the display device
3. Use an optical fiber cable to connect the optical fiber port of TX and RX
4. Connect the TX and RX to the power supply. When the indicator light P/S is always on, light F flashes quickly, it is  working.

Troubleshooting


  1. The red light (P) is not bright or the brightness is low, Check whether the power
     adapter is normal
  2. The green light (S) is not on, Check if the signal source has started or output; The
     green light stays on indicates regular work
  3. The green light (F) is not on, check if the fiber optic module is plugged in properly
     and if the fiber optic cables are working properly; (F)Flashing light indicates
     regular work
  4. If there is no image on the display, check if the display has selected the correct
     channel input. If the image is abnormal, refer to the EDID function application



VI. Package

1. HDMI transmitter                 x1 pcs
2. HDMI receiver                    x1 pcs
3. 12G optical fiber module         x1 pair
4. USB Cable                        x1 pcs
5. Power adapter                    x2 pcs
6. User Manual                      x1 pcs
