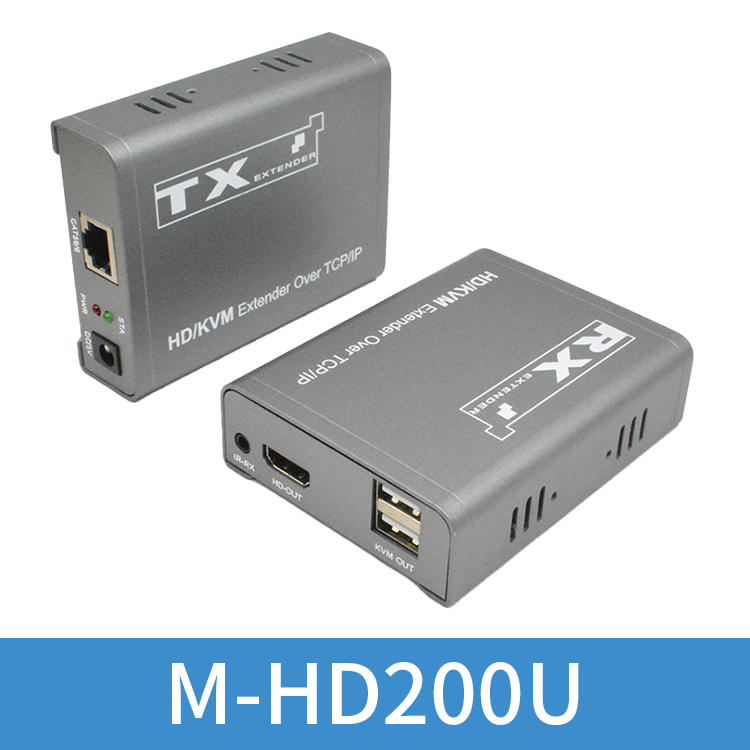

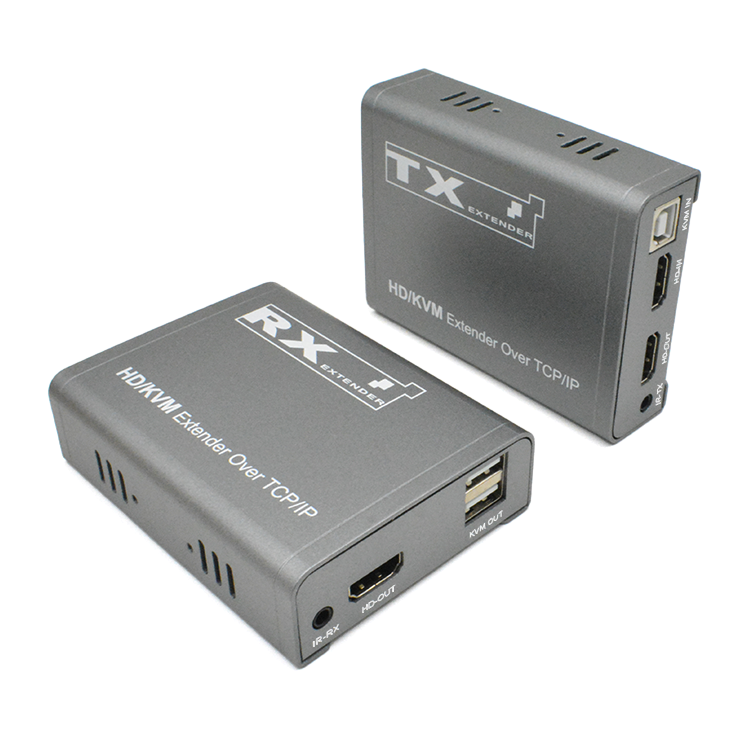

200M 1080P HD KVM Extender【M-HD200U】

1. Transmits Full-HD video and audio signals up to 200M over Cat5e/6 2. Support video resolution up to 1920*1080P@60Hz/4K@30Hz(optional) 3. Support IR signal transmission(20KHz~60KHz) 4. Support keyboard and mouse 5. Support over TCP/IP, support one TX to more RX by switch , distribution function is realized 6. Compliance with HDTV 1.3 and HDCP 1.2 standard 7. High compatibility, can auto-match source and display device 8. Built-in automatic adjustment system, make the image smooth, clear and stable 9. Built-in ESD protection system 10. Simple to install, plug and play

Product Information：

I. Introduction

The extender provides extension of HDTV signals long distances over Cat5e/6, it supports high resolution up to 1080P/4K@30Hz(optional), KVM and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

II. Features

1. Transmits Full-HD video and audio signals up to 200M over Cat5e/6

2. Support video resolution up to 1920*1080P@60Hz/4K@30Hz(optional)

3. Support IR signal transmission(20KHz~60KHz)

4. Support keyboard and mouse

5. Support over TCP/IP, support one TX to more RX by switch , distribution function is realized

6. Compliance with HDTV 1.3 and HDCP 1.2 standard

7. High compatibility, can auto-match source and display device

8. Built-in automatic adjustment system, make the image smooth, clear and stable

9. Built-in ESD protection system

10. Simple to install, plug and play

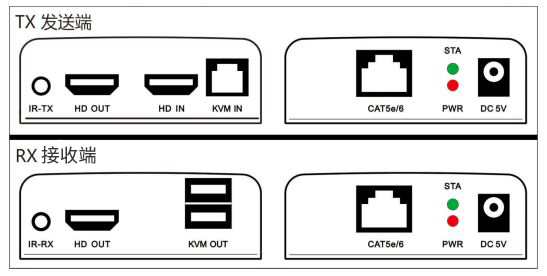

III. Product interface pictures

Port name	Description
HD IN/OUT	HDTV signal input/output
KVM IN/OUT	USB signal input/output
Cat6	connect Cat6
IR TX/RX	IR signal input/output
DC/5V	Power adapter socket
LED indicator	Description
PWR	unit power indicator
STA	HDTVI signal indicator

IV. Specification

Description		Parameter
Video	Standards	HDTV 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	1920X1080P@60Hz; 4K@30Hz(optional)
	Connector	HDTV-A
	Impedance	100Ω
USB	Interface	PC: Type B USB interface; connect to pc; K/M: connect USB keyboard and mouse;
	USB Signal	HID Signal
IR	Interface	3.5mm seat
	Signal direction	Unidirectional
	IR frequency	20-60kHz
	Signal model	Embedded unidirectional stereo
UTP	Interface	UTP Cat6
	Transmission distance	200 meters
Other	Power supply	The power adapter: DC 5V/1A
	Power dissipation	MAX 3W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	977326mm

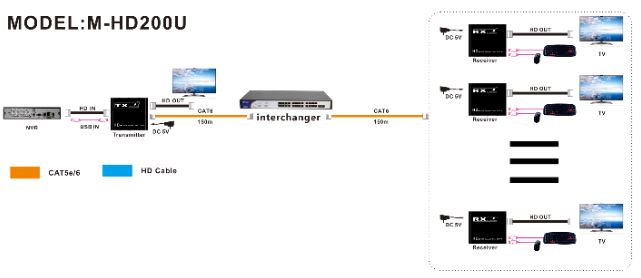

V. Installation Process:

1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver
2. Connect an HDTV cable between the HDTV input port of transmitter and the HDTV output port of the video source
3. Connect the HDTV output port of receiver to the display device with HDTV cable, Connect the transmitter and the receiver using Cat6
4. Connect transmitter KVM IN port to PC using mini USB cable
5. Connect USB keyboard and mouse to Receiver KVM OUT port
6. Power on Transmitter and Receiver

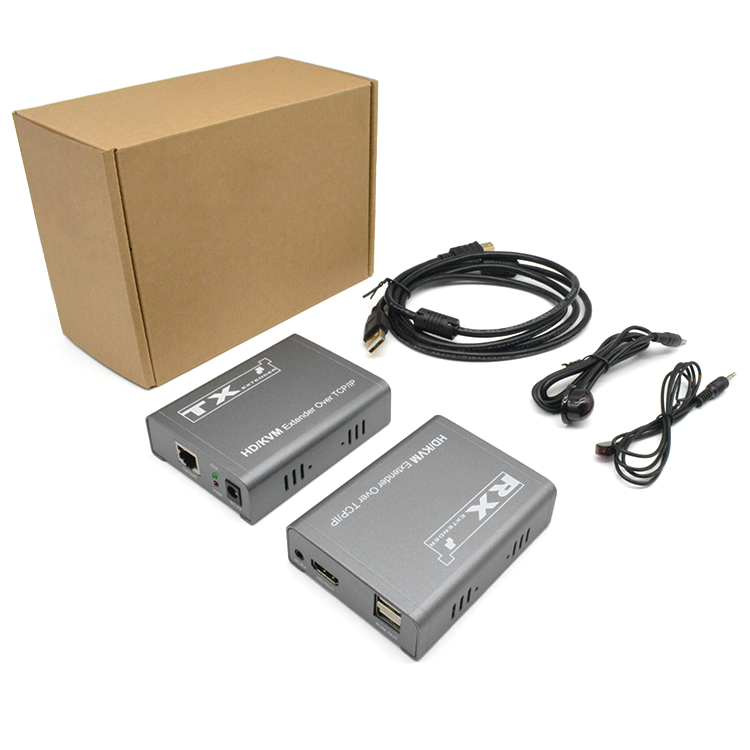

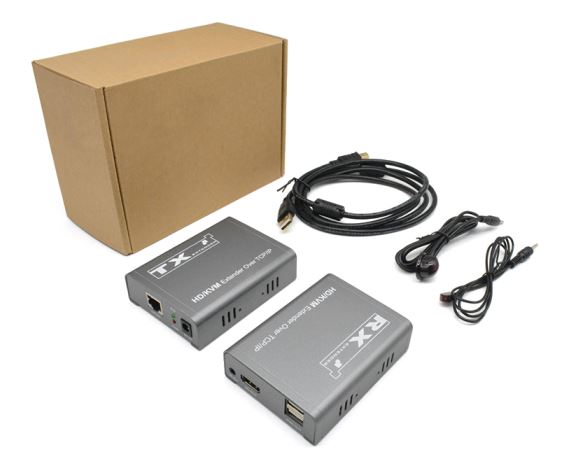

VI. Package

1. HDTV transmitter x1 pcs
2. HDTV receiver x1 pcs
3. USB Cable x1 pcs
4. Power adapter x2 pcs
5. IR TX/RX terminal x 1 set (optional)
6. User manual x1 pcs
