1080P 1×4 HD Splitter
【M-HD104L】

Introduction

The  HDMI  Splitter  1x4  uses  a  single  HDMl  source,  accessing to  multiple  HDMl  sinks.The  splitter  allows  one  HDMI  device  to  be  split  easily  to  two  HDMI  compatible  monitors  or  projectors.  The splitter can also be placed at the end of a long HDMI cable  to   regenerate   the   HDMI   signal.   The   HDMI   Resolution   up  to 3840x2160/30Hz.

Features

1.Support HDMI 1.4b
2. Support Full 3D
3.Support HDMI resolution up to 3840×2160/30Hz
4.Support the max baud rate of 3.4G and max bandwidth of340Mhz 5.Support deep color 8/10/12bit
6.Support input up to 8 meters AWG26 HDMI standard cable length, output up to 8 meters AWG26 HDMI standard cable length
7.Displaying single source, multi-output high-definition signal source from DVD player A/V receiver, set-top box
9.5V   power adapter

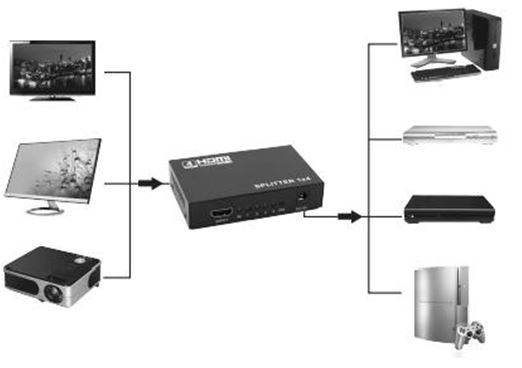

Connection

1.Connect  1  HDMI  cable from  HDMI source
devices  into  HDMI  Splitter  input.
2.Connect  2  HDMI  cables  from  displayers
(monitors  or  projectors)into  the  HDMI  Splitter  outputs.
3.Connect  5Vpower  supply  to  the  HDMI  1x4  Splitter.

Package

1.HDMI  Splitter  1x4
2 Power Adapter
3 User  Manual
