2160P 1×2 Full 3D HD Splitter 【M-HD102PB】
2.Support the max baud rate of 3.4G and max bandwidth of 340Mhz
3.Support deep color 30/36bit
4.Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC 5.Digital audio format, as DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD/HD(HBR) 6.Support signal retiming 7.Support AWG26 HD standard cable: input up to 12M, output upto 20M.(When the resolution is 4K, input up to 8M, output up to 8M) 8.No loss of quality
Introduction
The Full 3D 1x2 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks. The Splitter allows one HDMI device to be split easily to two HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Features
1. One HDMI input signal split to two HDMI sink devices 2.S叩port Full HD, Full 3D
3. Sup port up to 3840*2160/30Hz
4. Support deep color 30bit, 36bit
5. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
6. Digital audio format, as DTS-HD/Dolby-true HD/DTS/ Dolby-AC3/DSD/HD(HBR)
7. Support signal retiming
8. Support AWG26 HDMI standard cable: input up to 12 meters , output up to 20 meters.(when the resolution is 4K,input up to 8 meters,output to 8 meters.)
9. No loss of quality
Note: if power supply is insufficient ,you can also connect the external power adapter.

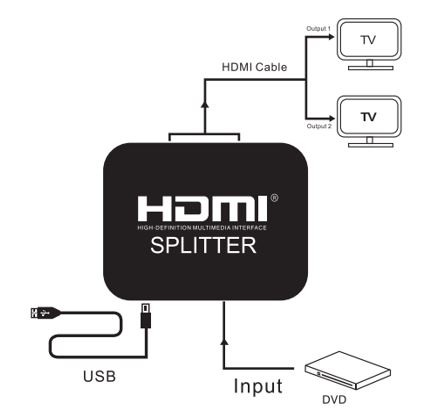

Connection
