Dual Channel Stereo Hi-Fi Audio Balun

MB-DSHFB MB-DSHFB MB-DSHFBMB-DSHFB
Model : MB-DSHFB

*Stereo Audio up to 3250ft(1000m) Via Cat5/5e/6

*Full ground-loop immunity in Audio

*Built in TVS for surge protection

*Audio Inputs support line level
To Purchase Products
Product Information:

Overview

The Dual Stereo Hi-Fi  Audio Balun(MB-DSHFB) allows unbalanced line level stereo analogue audio to be transmitted via Category 5/5e/6 unshielded copper twisted pair (UTP) in a point-to-point connection. The product is designed for audio applications where full-range, hi-fidelity audio frequency response is required.

Used in pairs, the Stereo Hi-Fi Balun allows audio equipment to be connected or moved within a structured cabling environment.



Applications

Boardroom systems, classroom training,

auditoriums, custom home installations and

intercom systems.



Features & Benefits

20 Hz to 20 KHz bandwidth

Cost-efficient cabling

Up to 3025ft (1,000m) via Cat5e/6 UTP

Quicker moves, adds and changes



Quick Setup Guide:

Plug the left and right RCA connectors of the transmit Balun into the audio output of the source component, plug the left and right RCA connectors from the receive Balun into your desired input component. Insert the CAT5 cable into both ends of the Baluns. You may use standard EIA 568A/B Termination.

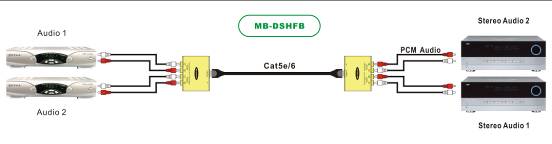

Typical Application



Specifications:

Environment

Line level unbalanced analog stereo audio

Devices

DVD players, satellite receivers, MPEG players, laptops, hi-fidelity stereo audio amplifiers, audio switchers, AV monitors, powered subwoofer and other line level audio equipment

Transmission

Transparent to the user.

3dB Bandwidth

20 Hz to 20 KHz over the distance range

Maximum Input

1.1Vp-p

Insertion Loss per balun pair

Less than 2 dB over the frequency range.

Common Mode Rejection

Greater than 60 dB @ 1KHz

Greater than 40 dB over the frequency and distance range

THD

Maximum 0.007% @ 1 KHz over distance range

Audio Source Impedance

100 ohms maximum

Audio Receiver Impedance

10 k ohms minimum

Max. Distance – Cat5e/6 UTP

3025ft (1,000m)

Pin Configuration (RJ45)

EIA 568 A or B

Audio 1 (White): pins 1[R] & 2 [T]  Audio 3 (White): pins 4[R] &5 [T]

Audio 2 (Red): pins 3 [R] & 6 [T]  Audio 4 (Red): pins 7 [R] & 8 [T]

Cable – UTP

24AWG or lower solid copper twisted pair wire

Impedance: 100 ohms at 1 MHz; Maximum capacitance: 20 pf/foot.

Attenuation: 6.6 dB/1000 ft at 1 MHz

Connectors

Four  RCA -F connectors :audio(white,red,white,red)

One RJ45 for twisted pair

Temperature

Operating: 0° to 55°C

Storage: -20° to 85°C

Humidity: Up to 95% non-condensing

Enclosure

Aluminum alloy

Dimensions(packaging)

155mm*80mm*30mm (including one pair of Balun)

Weight(packaging)

250g



NOTE: Baluns are interchangeable for transmit or receive functions.
