100M HDMI+USB extender

Transmits HDMI video and audio signals up to 120m over a single CAT5e/6 cable;
Support video resolution up to 1920*1080P@60Hz;
Support IR signal transmission;
Support keyboard and mouse .
Support over TCP/IP
Compliance with HDMI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
To Purchase Products
Product Information:


1. Description

The extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1080P, KVM and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

2. Features

Transmits HDMI video and audio signals up to 120m over a single CAT5e/6 cable;

Support video resolution up to 1920*1080P@60Hz;

Support IR signal transmission;

Support keyboard and mouse .

Support over TCP/IP

Compliance with HDMI 1.3 and HDCP 1.2 standard;

High compatibility, can auto-match source and display device;

Built-in automatic adjustment system, make the image smooth, clear and stable;

Built-in ESD protection system;

Simple to install, plug and play

3. Specifications

Parameter

Description

Video

Standards

HDMI 1.3; HDCP 1.2

Maximum pixel clock

165MHz

Maximum data rate

6.75Gbps

Resolution

1920X1080P@60Hz

Connector

HDMI-A

Impedance

100Ω

USB

Interface

PC: Type B USB interface; connect to pc;

K/M: connect USB keyboard and mouse;

USB signal

HID Signal

IR

Interface

3.5mm seat

Signal direction

Unidirectional

Signal type

Digital

IR frequency

38kHz ; Optional (20 KHZ - 60 KHZ)

UTP

Interface

RJ45

Transmission distance

CAT5e/6---120m

Other

Power supply

The power adapter: DC 5V/1A

Power dissipation

MAX 3W

Temperature

Operating: -5 ~ +70

Humidity

Operating: 5% ~ 90%

Dimension

100*60*25mm

The warranty

1 year free warranty

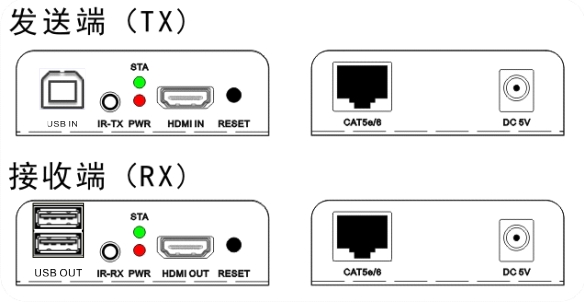

4. Panel

Port name

Description

HDMI IN/OUT

HDMI signal input/output

UTP

RJ45 port connect cat5e/6.

PC IN

USB cable connect to PC

K/M

connect to keyboard and mouse

IR IN/OUT

IR signal input/output

DC IN

Power adapter socket

LED indicator

Description

PWR

System power indicator

STATUS

Video signal indicator.

5. Package list



HDMI transmitter ……………………….……. 1 pcs

HDMI receiver …………………………………. 1 pcs

USB Cable …………………………….…………. 1 pcs

Power adapter ……………………………….... 2 pcs

IR TX/RX terminal …………………………….. 1 set

User manual ………………………………….. 1 pcs

6. Installation



1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver

2. Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source

3. Connect the HDMI output port of receiver to the display device with HDMI cable,

Connect the transmitter UTP port to the receiver UTP port using a single CAT5e/6 cable

4. Connect transmitter PC IN port to PC using mini USB cable

5. Connect USB keyboard and mouse to Receiver K/M port

6. Power on Transmitter and Receiver
