No Power Required HDMI Extender【M-HD30】

Introduction:

Used for a pair extension of this HDMI Cat6 cable to extend HD signal up to 30 meters, and can achieve 1080P, which not only broke the HDMI cable transmission length limitations, but also more convenient and flexible, the majority of customers are more cost savings.

We designed this extender specifically for  CCTV, such as: DVR, NVR hard disk video recorder.

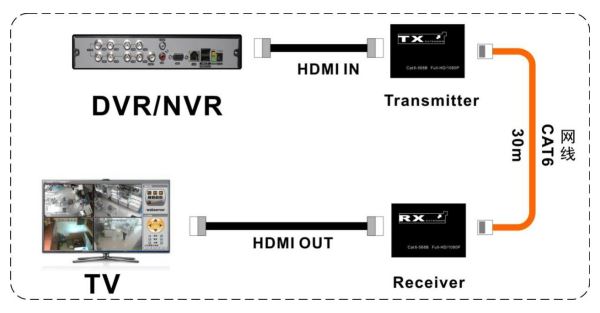

Connection and Operation:

1. Plug the sender of the HDMI extender into the HDMI signal source, such as: CCTV, DVR, NVR hard disk video recorder.

2. Connect one Cat6 cable to the sender and the receiver.

3. Plug the receiver of the HDMI extender into the HDMI display, such as: HD-LCD.

Features:

1. Support 1080P, supports 165MHz/165Gbps single channel (4.95Gbps all channels) bandwidth

2. Support 8bit single channel (24bit all channels) deep color

3. Single cat6(recommended) cable can up to 30 meters, the resolution can up to 1080P

4. Follow the standard of IEEE-568B

5. Compact size

6. Plug and play

7. No power required

8. No loss of quality
