250m HDMI+USB Extender
【M-HD250U】

HDMI Extender over Cat5e/Cat6 with USB and IR

I. Introduction

The extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1080P, KVM and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

II. Features:

1. Transmits HDMI video and audio signals up to 250m over a single CAT6 cable

2. Support video resolution up to 1920*1080P@60Hz

3. Support IR signal transmission

4. Support keyboard and mouse

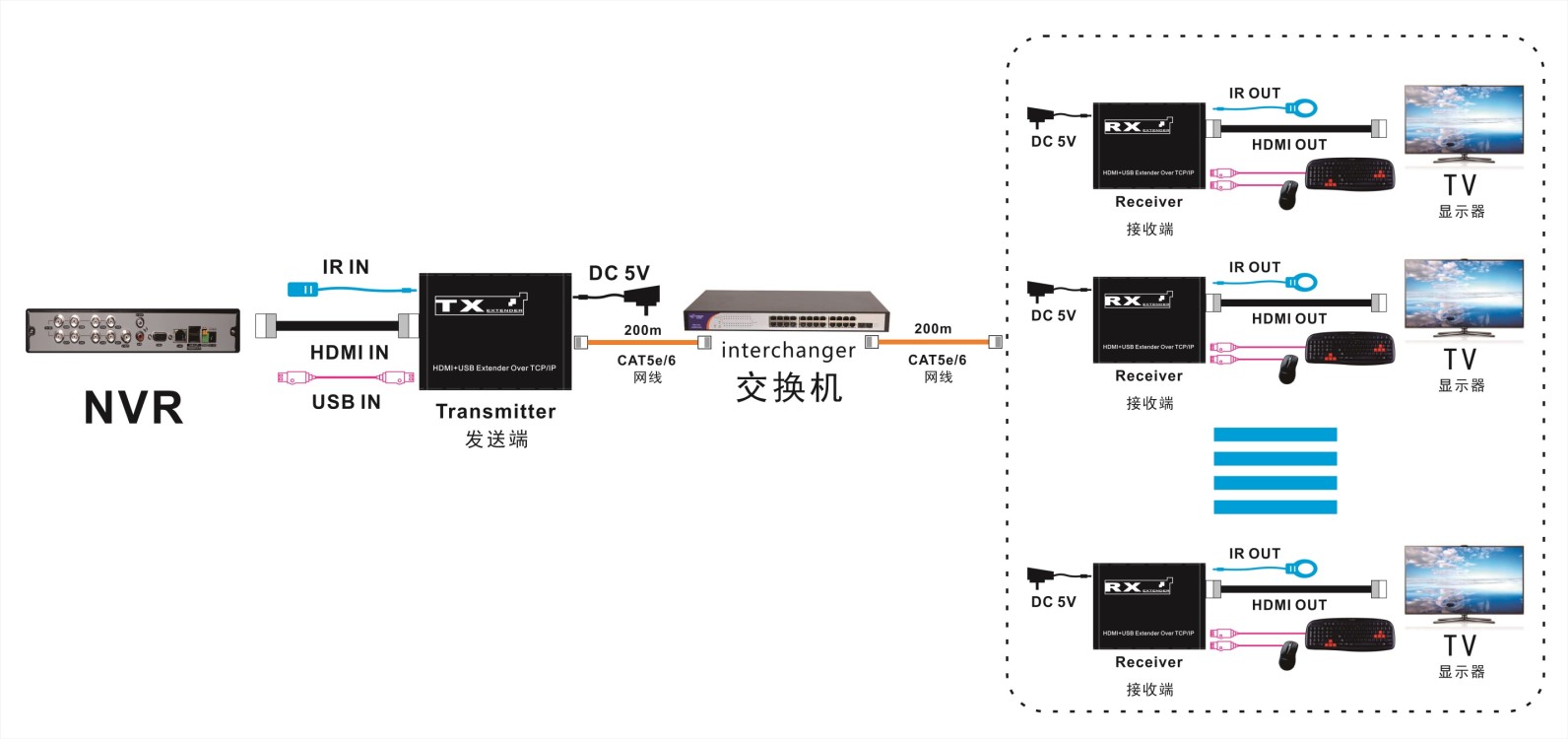

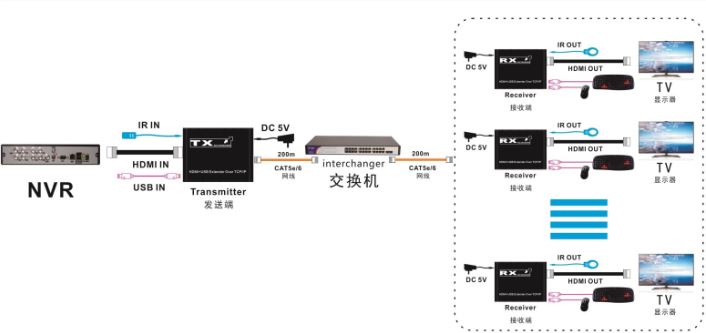

5. Support over TCP/IP, support one TX to more RX

6. Compliance with HDMI 1.3 and HDCP 1.2 standard

7. High compatibility, can auto-match source and display device

8. Built-in automatic adjustment system, make the image smooth, clear and stable

9. Built-in ESD protection system

10. Simple to install, plug and play

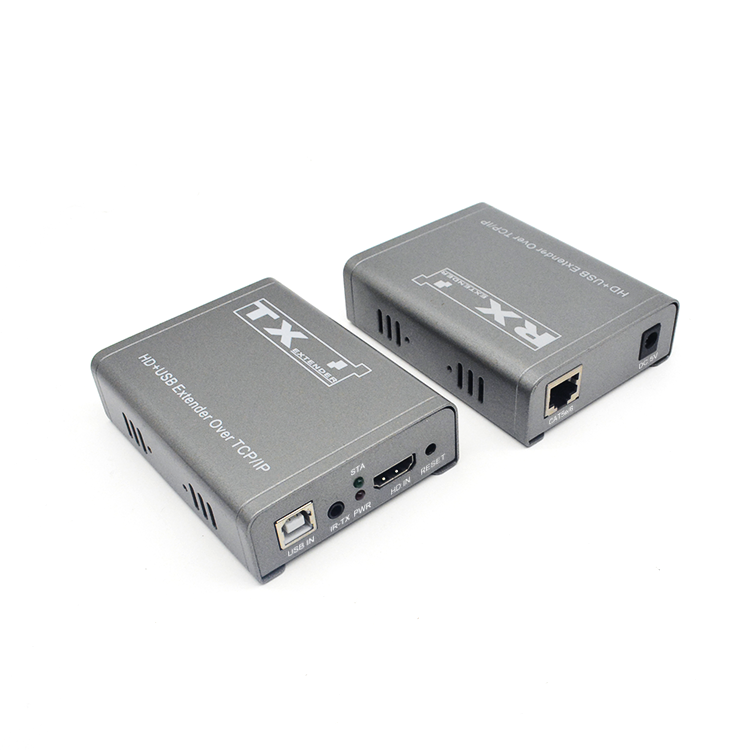

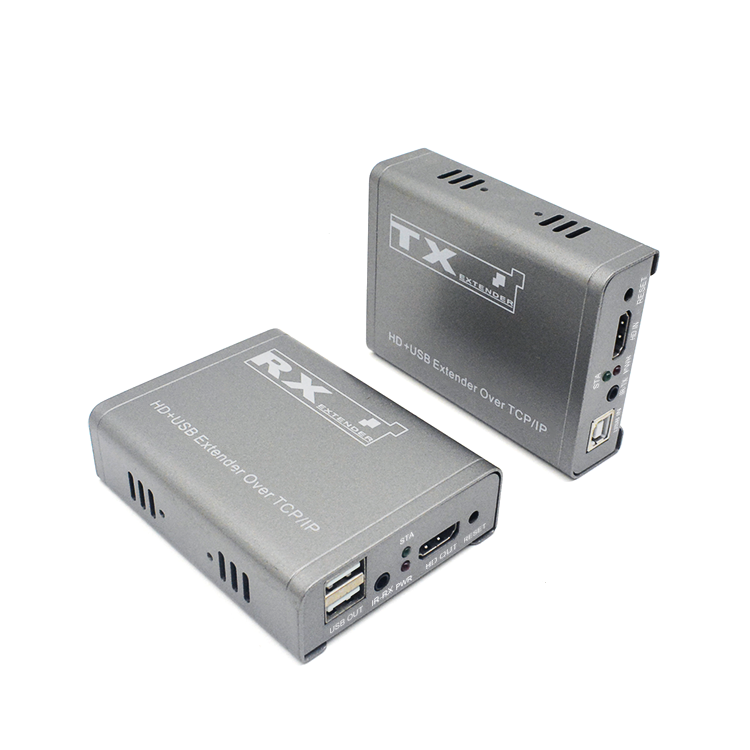

III. Product interface pictures
