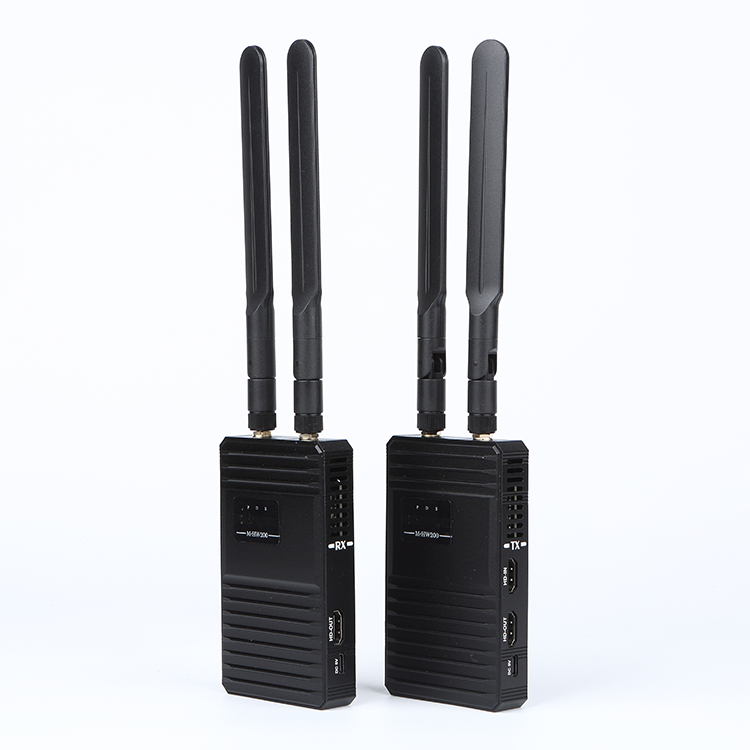

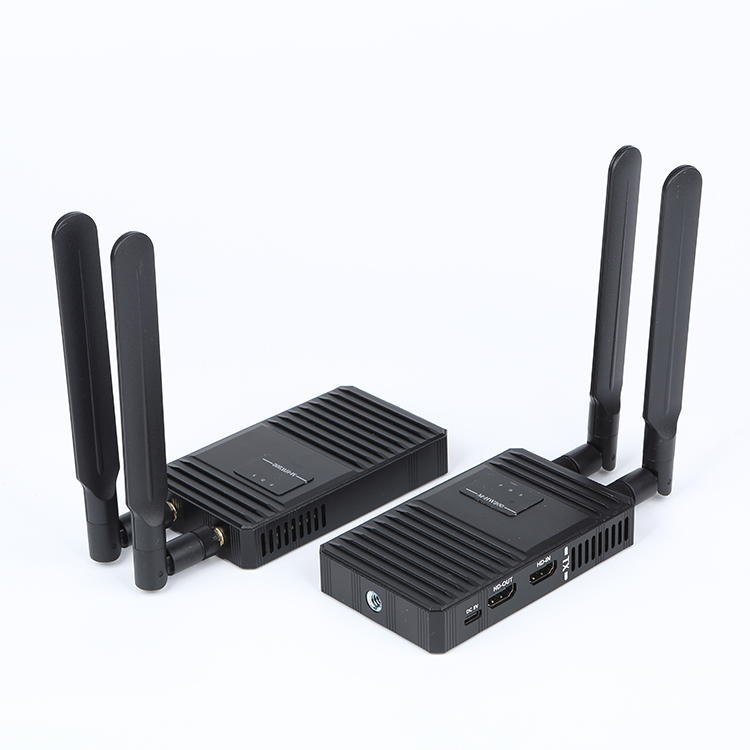

200m HDMI Wireless Extender
【M-HW200】
I. Introduction
The wireless transmission transmits high-definition audio and video signals through 5.8G wireless signals, which can adapt to a variety of complex application environments. The device has excellent image processing and transmission capabilities, making the signal transmission more smooth and stable. It is a reliable, high-performance and efficient HDMI signal extension mode.
II. Features:
1. Transmit HDMI video and audio signals over 5.8G wireless up to 200m (656ft)
2. Support video resolution up to 1920*1080P@60Hz
3. Supports one TX and one RX, support one TX and four RX at most
4. The special format H.264 is used to compress and decompress the video, improve the transmission efficiency and make the playback more smooth
5. Compliance with HDMI 1.3 and HDCP 1.2 standard
6. High compatibility, can auto-match source and display device
7. Built-in ESD protection system
9. Simple to install, plug and play
III. Installation Process:
1. Connect the HDMI signal source to the HD-IN port of transmitter
2. Connect the HD-OUT port of receiver to the display device (such as HD TV, projector, etc.)
3. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver

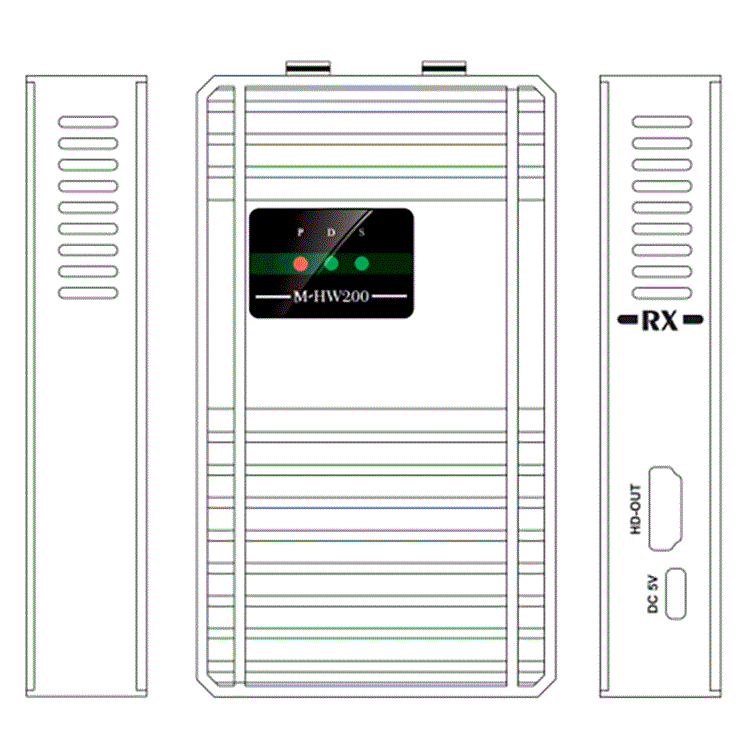

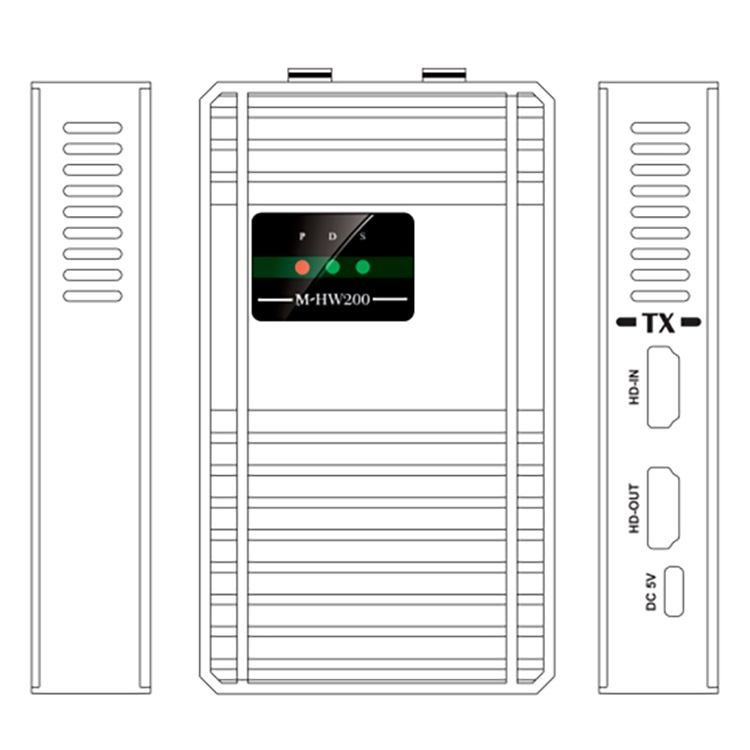

IV.Product interface pictures
TX RX
HDMI IN/OUT HDMI signal input/output DC/5V USB type-C power input D Connection indicator (flash pairing successful) S HDMI signal indicator (always on) P Power indicator (always on)
V. Specification
Description Parameter Video HDMI 1.3; HDCP 1.2 Compression format H.264 Maximum pixel clock 165MHz Maximum data rate 6.75Gbps 1920X1080P@60Hz Connector HDMI-A Impedance 100Ω Transmission delay 0.8 seconds Recommended max HDMI cable Input/Output distance ＜5m, when 1920*1080P@60Hz WIFI RF power 21dbm Wireless standard 802.11a、802.11n、802.11ac Signal direction unidirectional Frequency 5150~5250MHz、5475~5850MHz 200m in open environment Modulation mode OFDM Bandwidth 20MHz Other The power adapter: DC 5V/1A MAX 3W Operating: -5℃ ~ +70℃ Operating: 5% ~ 90% 116*68*20mm
VI. Package
1. HDMI transmitter x1 pcs 2. HDMI receiver x1 pcs
3. antenna x4 pcs 4. Power adapter x2 pcs
5. HDMI cable x 1 pcs 6. User manual x1 pcs
VII. Pairing mode
a. One to one, paired well before leaving the factory
b. When one to many, you need to pair according to the following steps:
Before pairing, confirm that the previously paired RX is powered off in the same environment(Otherwise, the pairing will not succeed)
1.Power on TX and RX, wait for 10-20 seconds, P (red light) and D (green light) of TX and RX will be on for a long time;
2.Connect the HDMI cable to the HD-OUT of RX, then connect the other end of the HDMI cable to the HD-IN of TX (Note: the HDMI cable is connected to RX first and then TX);
3.The S (green light) of RX will flash for 2-3 seconds and stay on, then the S (green light) of TX will flash for 2-3 seconds and stay on, and then the D (green light) of TX will flash continuously. At this time, pairing is successful.
VIII. Connection diagram
