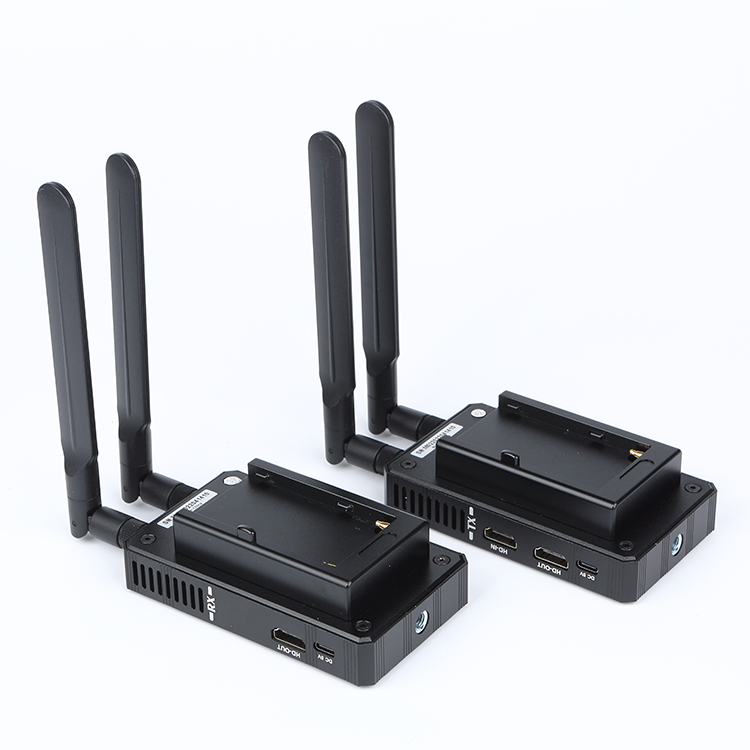

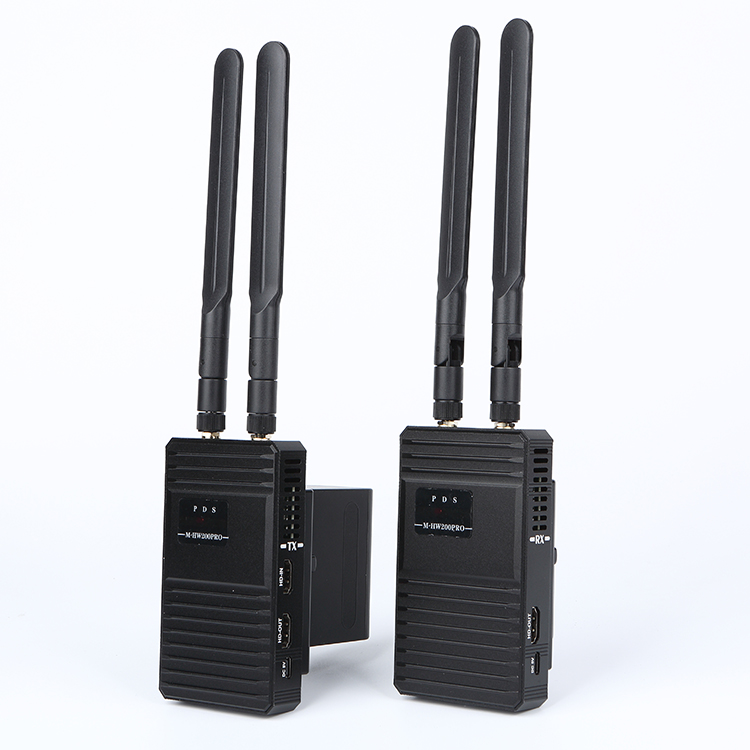

200m HDMI Wireless Extender, with back buckle battery

(1) HDMI video and audio signals are transmitted via wireless WIFI, with a maximum length of 200m (2) The highest resolution of high-definition video signal can reach 1920 * 1080p @ 60 Hz (3) Compatible with HDMI 1.3 (4) H.264 is used to compress and decompress the video, which can effectively improve the transmission efficiency and ensure the fluency of playing (5) Comply with HDCP 1.2 standard-high bandwidth digital content protection technology (7) Automatic identification and configuration of various display modes (8) Built-in automatic equalization system, the picture is smooth, clear and stable
To Purchase Products
Product Information:

I. Introduction
The wireless transmission transmits high-definition audio and video signals through 5.8G wireless signals, which can adapt to a variety of complex application environments. The device has excellent image processing and transmission capabilities, making the signal transmission more smooth and stable. It is a reliable, high-performance and efficient HDMI signal extension mode.

II. Features:
1. Transmit HDMI video and audio signals over 5.8G wireless up to 200m (656ft)
2. Support video resolution up to 1920*1080P@60Hz
3. Supports one TX and one RX, support one TX and four RX at most
4. The special format H.264 is used to compress and decompress the video, improve the transmission efficiency and make the playback more smooth
5. Compliance with HDMI 1.3 and HDCP 1.2 standard
6. High compatibility, can auto-match source and display device
7. Built-in ESD protection system
9. Simple to install, plug and play

III. Installation Process:
1. Connect the HDMI signal source to the HD-IN port of transmitter
2. Connect the HD-OUT port of receiver to the display device (such as HD TV, projector, etc.)
3. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver

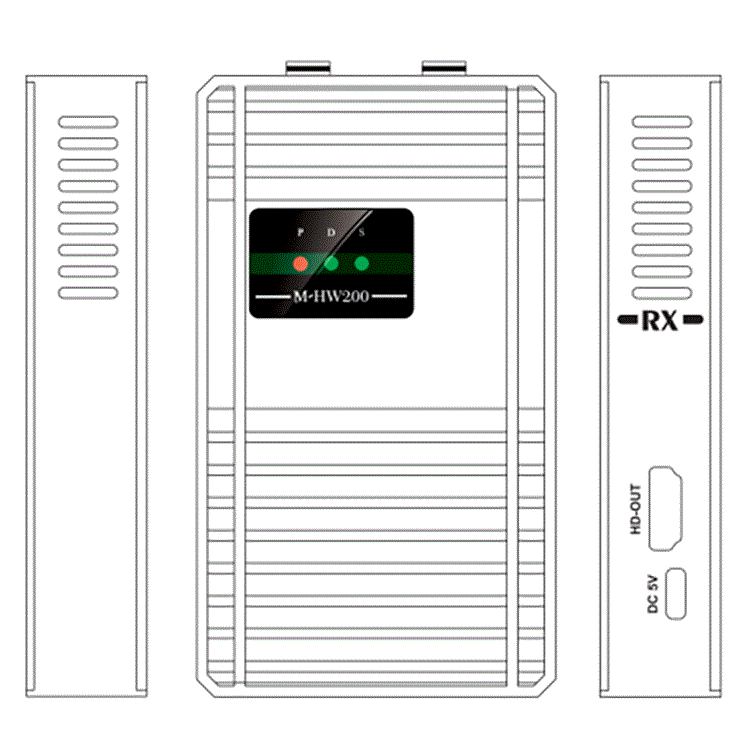

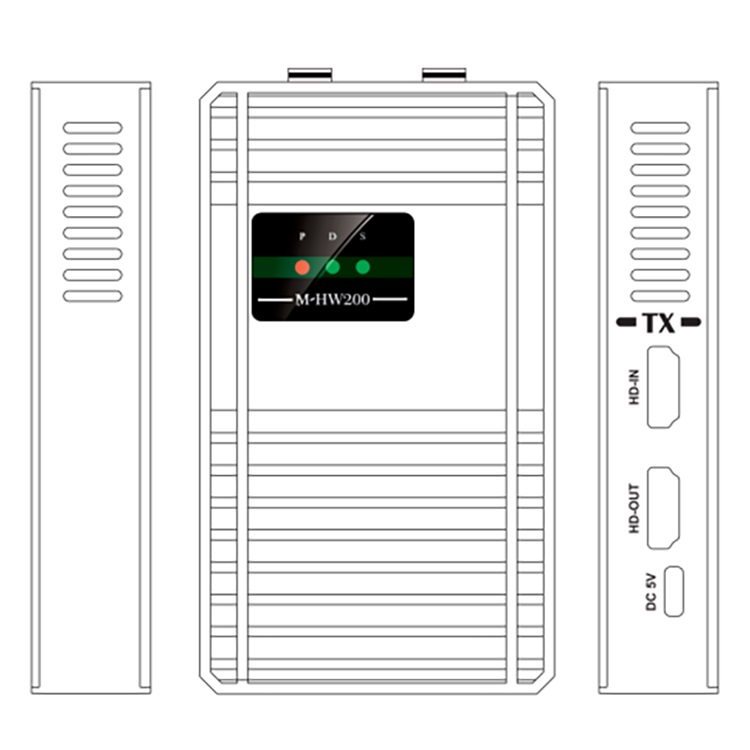

IV.Product interface pictures

              TX                                                               RX





Port name

Description

HDMI IN/OUT

HDMI signal input/output

DC/5V

USB type-C power input

LED indicator

Description

D

Connection indicator (flash pairing successful)

S

HDMI signal indicator (always on)

P

Power indicator (always on)

V. Specification



Description

Parameter

Video

Standards

HDMI 1.3; HDCP 1.2

Compression format

H.264

Maximum pixel clock

165MHz

Maximum data rate

6.75Gbps

Resolution

1920X1080P@60Hz

Connector

HDMI-A

Impedance

100Ω

Transmission delay

0.8 seconds

Recommended max HDMI cable Input/Output distance

5m, when 1920*1080P@60Hz

WIFI

RF power

21dbm

Wireless standard

802.11a802.11n802.11ac

Signal direction

unidirectional

Frequency

5150~5250MHz5475~5850MHz

Transmission distance

200m in open environment

Modulation mode

OFDM

Bandwidth

20MHz

Other

Power supply

The power adapter: DC 5V/1A

Power dissipation

MAX 3W

Temperature

Operating: -5 ~ +70

Humidity

Operating: 5% ~ 90%

Dimension

116*68*20mm

VI. Package
1. HDMI transmitter x1 pcs               2. HDMI receiver x1 pcs
3. antenna x4 pcs                        4. Power adapter x2 pcs
5. HDMI cable x 1 pcs                    6. User manual x1 pcs

VII. Pairing mode
a. One to one, paired well before leaving the factory
b. When one to many, you need to pair according to the following steps:
Before pairing, confirm that the previously paired RX is powered off in the same environment(Otherwise, the pairing will not succeed)
1.Power on TX and RX, wait for 10-20 seconds, P (red light) and D (green light) of TX and RX will be on for a long time;
2.Connect the HDMI cable to the HD-OUT of RX, then connect the other end of the HDMI cable to the HD-IN of TX (Note: the HDMI cable is connected to RX first and then TX);
3.The S (green light) of RX will flash for 2-3 seconds and stay on, then the S (green light) of TX will flash for 2-3 seconds and stay on, and then the D (green light) of TX will flash continuously. At this time, pairing is successful.

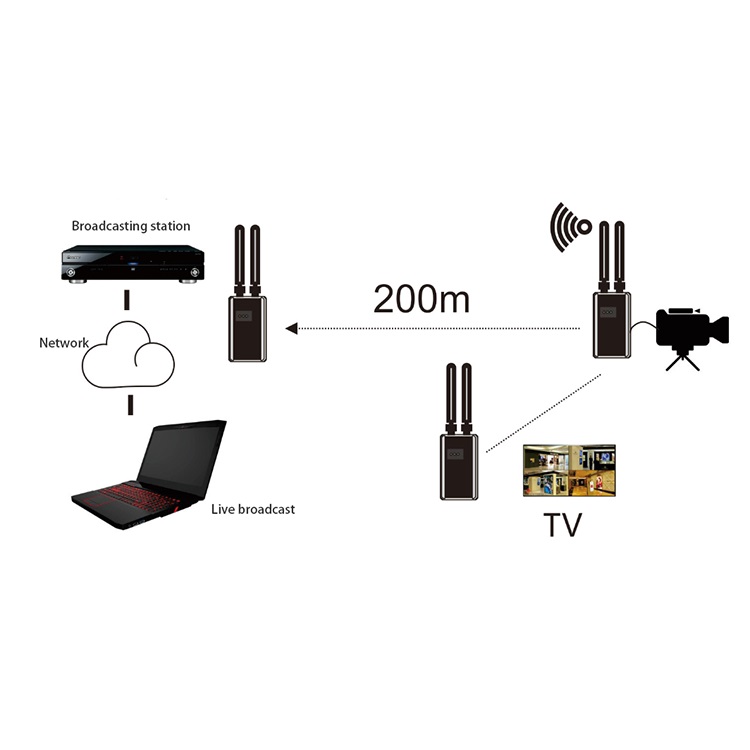

VIII. Connection diagram
