20KM HDMI Fiber Extender
【M-HF100U(SC)】

I. Introduction
The extender provides extension of HDMI signals long distances over a single Fiber, it supports high resolution up to 1080P and 4K@30Hz(optional model function), KVM and IR signal transmission, embedded audio input and output (optional model function). The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

II. Features:

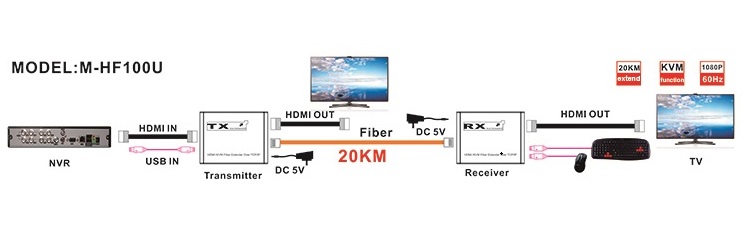

1. Transmits HDMI video and audio signals up to 20KM over a single Fiber
2. Support video resolution up to 1920*1080P@60Hz, 4K@30Hz(optional model function)
3. Support IR signal transmission(20KHz~60KHz)
4. Support keyboard and mouse
5. Support one-way embedded independent audio input and output (optional model function)

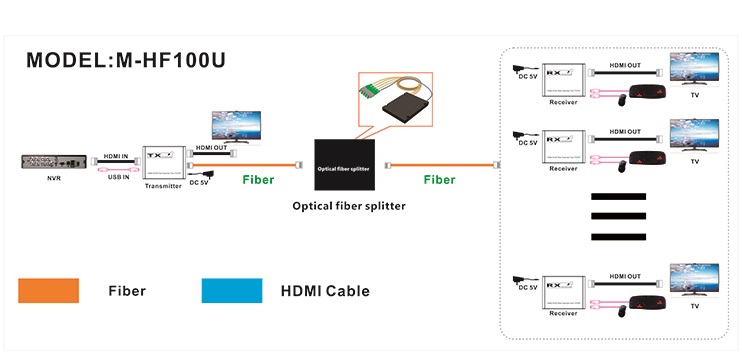

6. Support over TCP/IP, support one TX to more RX by optical fiber splitter or optical fiber switch , distribution function is realized
7. Compliance with HDMI 1.3 and HDCP 1.2 standard
8. High compatibility, can auto-match source and display device
9. Built-in automatic adjustment system, make the image smooth, clear and stable
10. Built-in ESD protection system
11. Simple to install, plug and play

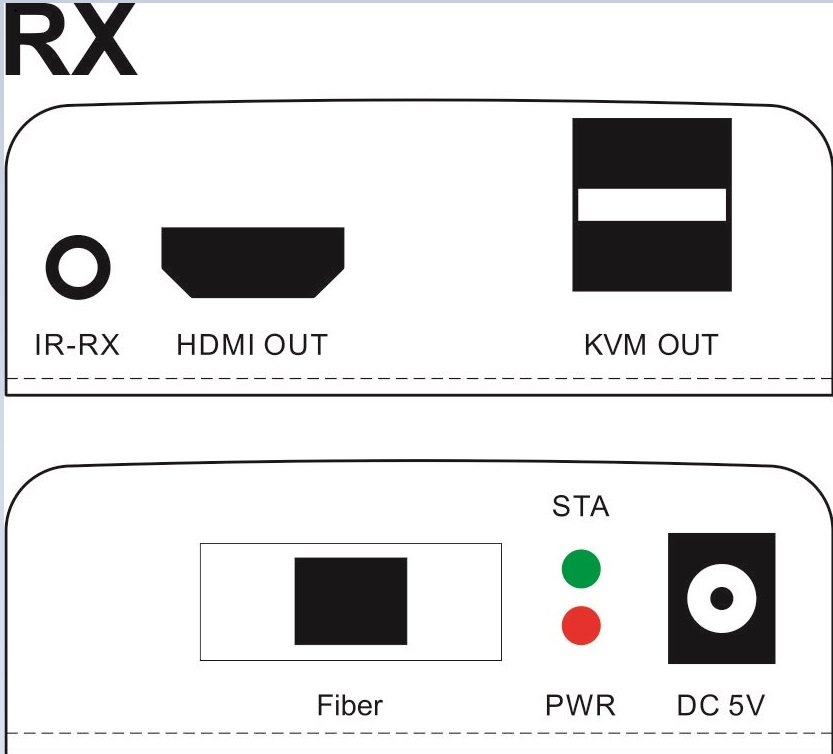

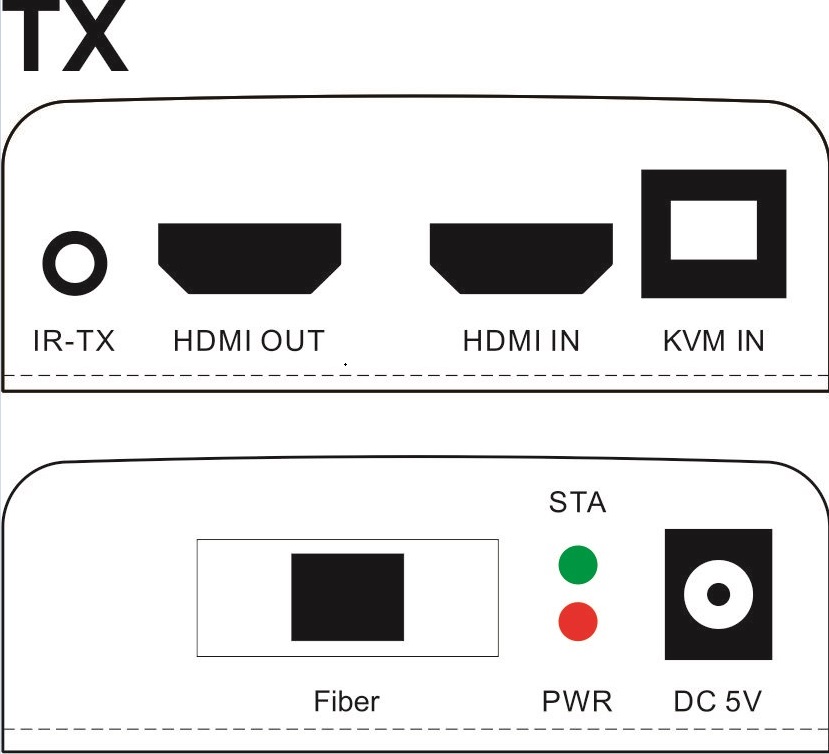

III. Product interface pictures

VI. Package
1. HDMI transmitter x1 pcs
2. HDMI receiver x1 pcs
3. USB Cable x1 pcs
4. Power adapter x2 pcs
5. IR TX/RX terminal x 1 set (optional)
6. User manual x1 pcs
