20KM HDMI Fiber Extender
【M-HF100U(FC)】

The extender provides extension of HDMI signals long distances over a single Fiber, it supports high resolution up to 1080P and 4K@30Hz(optional model function), KVM and IR signal transmission, embedded audio input and output (optional model function). The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Product Information：

I. Introduction
The extender provides extension of HDMI signals long distances over a single Fiber, it supports high resolution up to 1080P and 4K@30Hz(optional model function), KVM and IR signal transmission, embedded audio input and output (optional model function). The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

II. Features:
1. Transmits HDMI video and audio signals up to 20KM over a single Fiber
2. Support video resolution up to 1920*1080P@60Hz, 4K@30Hz(optional model function)
3. Support IR signal transmission(20KHz~60KHz)
4. Support keyboard and mouse
5. Support one-way embedded independent audio input and output (optional model function)

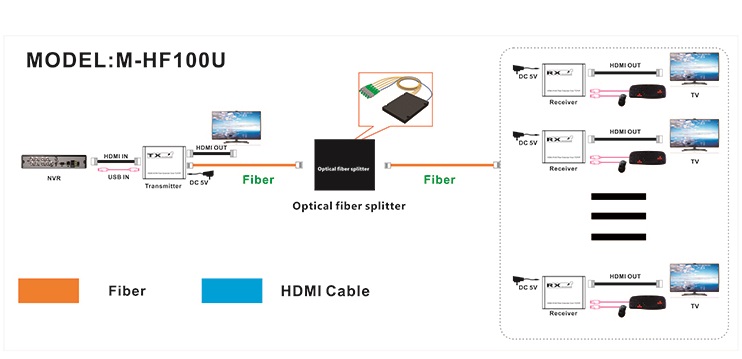

6. Support over TCP/IP, support one TX to more RX by optical fiber splitter or optical fiber switch , distribution function is realized
7. Compliance with HDMI 1.3 and HDCP 1.2 standard
8. High compatibility, can auto-match source and display device
9. Built-in automatic adjustment system, make the image smooth, clear and stable
10. Built-in ESD protection system
11. Simple to install, plug and play

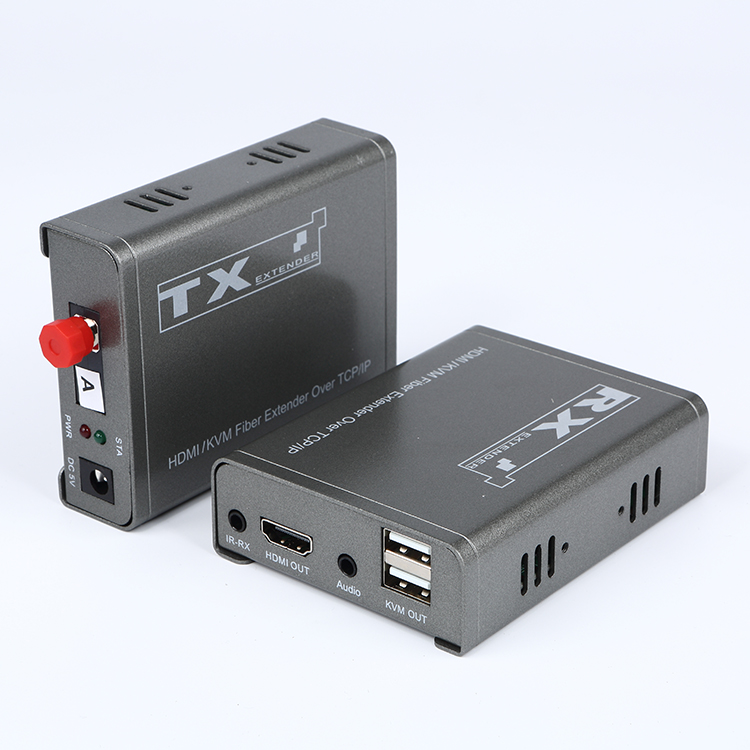

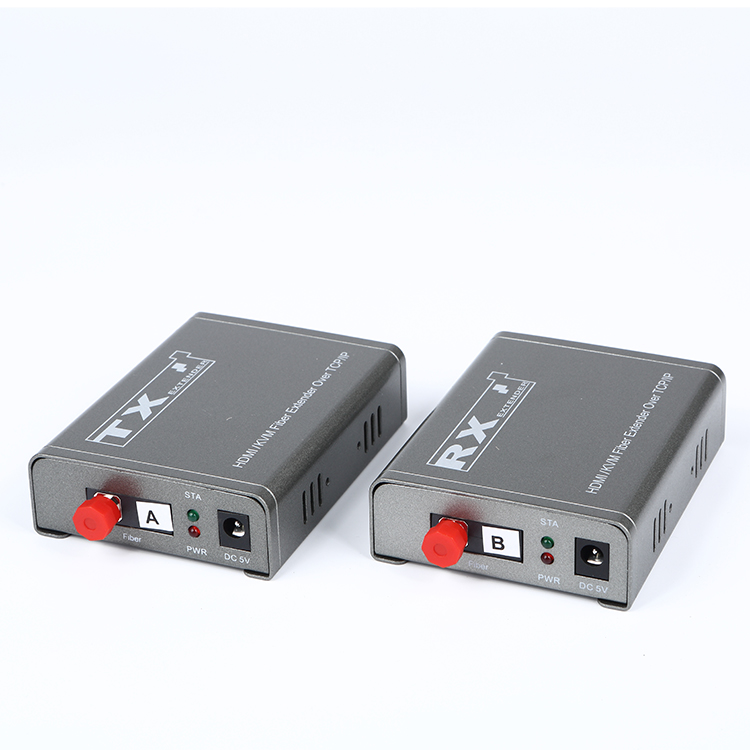

III. Product interface pictures

Port name	Description
HDMI IN/OUT	HDMI signal input/output
KVM IN/OUT	USB signal input/output
Fiber	connect Optical Fiber (SC/SF)
IR TX/RX	IR signal input/output
Audio	3.5mm audio input/output
DC/5V	Power adapter socket
LED indicator	Description
PWR	unit power indicator
STA	HDMI signal indicator

IV. Specification

Description		Parameter
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	1920X1080P@60Hz; 4K@30Hz(optional model function)
	Connector	HDMI-A
	Impedance	100Ω
USB	Interface	PC: Type B USB interface; connect to pc; K/M: connect USB keyboard and mouse;
USB	USB Signal	HID Signal
IR	Interface	3.5mm seat
	Signal direction	Unidirectional
	IR frequency	20-60kHz
Audio	Interface	3.5mm seat
Audio	Signal model	Embedded unidirectional stereo
Fiber	Interface	SC/FC
	Fiber Model	Single mode
	wavelength	Single mode 1310nm；1550nm
	bandwidth	6.25Gbps
	Transmission distance	Default standard 20KM, MAX up to 80KM
Other	Power supply	The power adapter: DC 5V/1A
	Power dissipation	MAX 3W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	977326mm

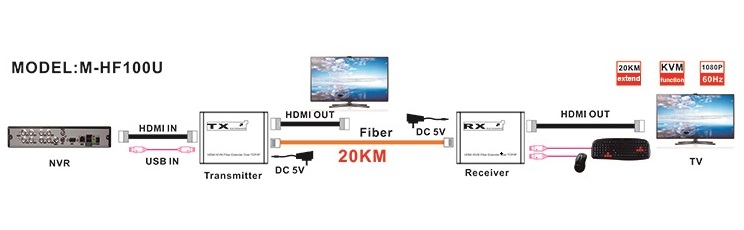

V. Installation Process:
1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver
2. Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source
3. Connect the HDMI output port of receiver to the display device with HDMI cable, Connect the transmitter Fiber port to the receiver Fiber port using a single Optical fiber
4. Connect transmitter PC IN port to PC using mini USB cable
5. Connect USB keyboard and mouse to Receiver K/M port
6. Connect the audio input/output with a 3.5mm audio cable
7. Power on Transmitter and Receiver

VI. Package
1. HDMI transmitter x1 pcs
2. HDMI receiver x1 pcs
3. USB Cable x1 pcs
4. Power adapter x2 pcs
5. IR TX/RX terminal x 1 set (optional)
6. User manual x1 pcs
