20KM VGA Fiber Extender
【M-VF100U(FC)】

I. Introduction

The extender provides extension of VGA signals long distances over a single Fiber, it supports high resolution up to 1080P, KVM and Audio signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

II. Features:

1. Transmits VGA video and audio signals up to 20KM over a single Fiber

2. Support video resolution up to 1920*1080P@60Hz

3. Support keyboard and mouse

4. Support Audio input/output

5. Support VGA loop output

6. High compatibility, can auto-match source and display device

7. Built-in automatic adjustment system, make the image smooth, clear and stable

8. Built-in ESD protection system

9. Simple to install, plug and play

III. Specification

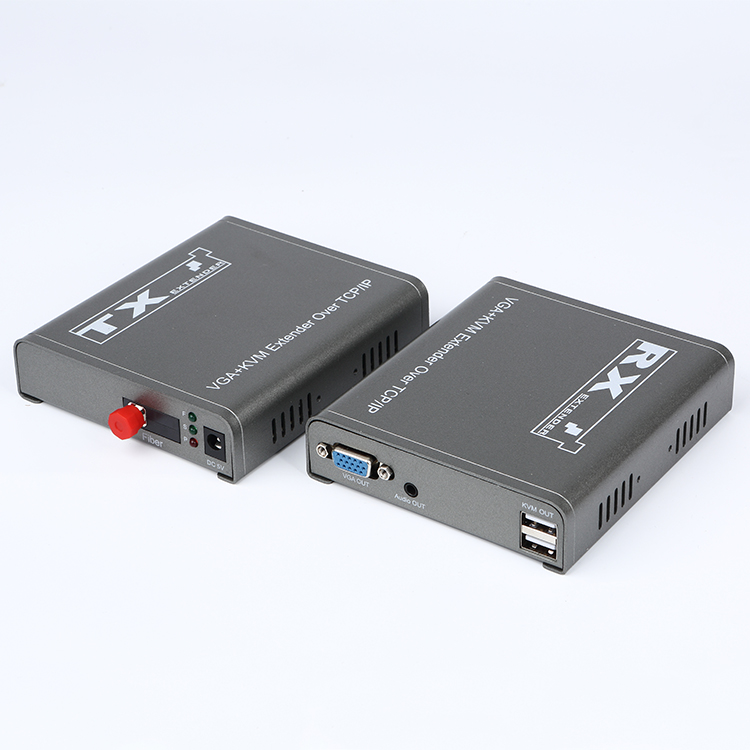

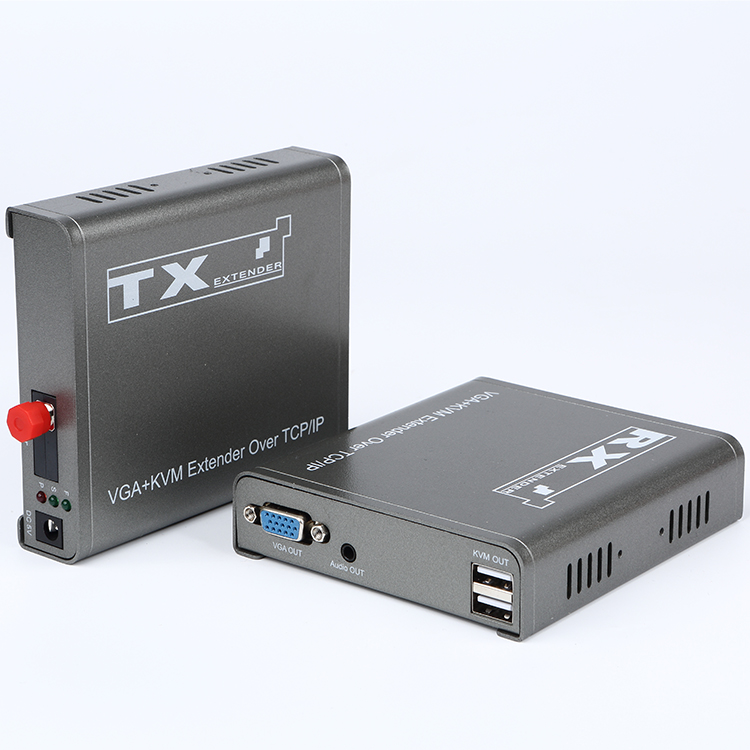

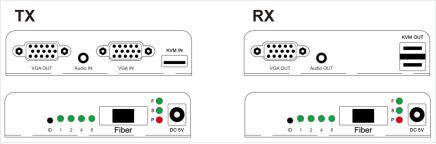

IV. Product interface pictures

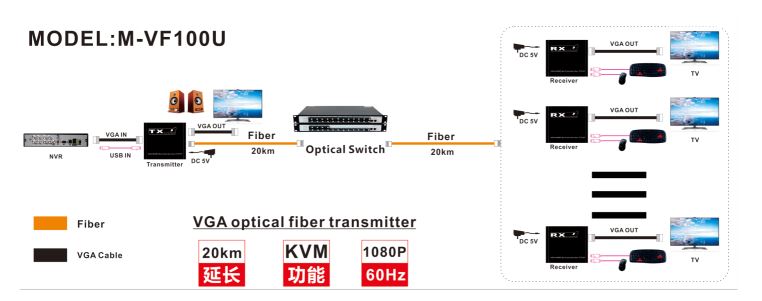

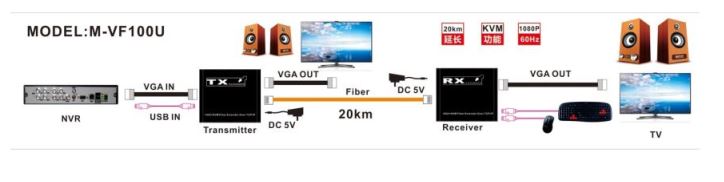

V. Installation Process:

1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver

2. Connect an VGA cable between the VGA input port of transmitter and the VGA output port of the video source

3. Connect the VGA output port of receiver to the display device with VGA cable, Connect the transmitter Fiber port to the receiver Fiber port using a single fiber cable

4. Connect transmitter PC IN port to PC using mini USB cable

5. Connect USB keyboard and mouse to Receiver K/M port

6. Connect the audio input/output using a 3.5 M/M audio cable

7. Power on Transmitter and Receiver

VI. Package

1. VGA transmitter x1 pcs

2. VGA receiver x1 pcs

3. USB Cable x1 pcs

4. Power adapter x2 pcs

5. User manual x1 pcs
