4K/12G-SDI Optical Transceiver
【M-SD100A】

I. Introduction

The M-SD100A fiber extender transmits HD over long distances via a single fiber 4K/ 12G-SDI HD video signal, support 16-channel embedded audio synchronization function;The multi-rate 12G-SDI interface is compatible with all SD, HD and Ultra HD formats and devices,Available up to 2160P@60Hz, including Class A and Class B devices.The transmitter is equipped with an optical fiber expansion slot, which can be installed with any standard 3G, 6G or 12G-SDI SFP optical fiber module, and can adapt to a variety of complex application environments by using the low cost optical cable widely used in computer networks to transmit SDI.

The device has excellent image processing and output capabilities, enabling signal transmission smoother and more stable, it is a reliable, high-performance, Efficient 4K/12G-SDI signal extension method.

II. Features

l Long-distance transmission of 4K/12G-SDI video and audio signals through optical fiber, up to 3-20 kilometers.

l HD video signal resolution up to 2160P@60Hz.

l Support all-digital lossless transmission, 16-channel embedded audio and video synchronous transmission.

l Support local loop output; remote support two ways synchronous output.

l Support PAL/NTSC; Strong compatibility, can automatically identify and configure a variety of display modes.

l Supports plug and play and hot swap.

l Built-in automatic balancing system, the picture is smooth, clear

and stable.

l Built-in ESD electrostatic protection circuit, all-round protection system.

l Easy to install, plug and play, no setup required.

troubleshooting:

1：The red light (PWR) is not on or the brightness is low; Check whether the power adapter works properly.

2：When the green light (STA) of the sending end (TX) is not on; Check whether the signal source is started or has no output; Lighting indicates normal operation.

3：When the green light (STA) at the receiving end (RX) is not on; Check whether the optical fiber module at the sending end (TX) is in normal contact;No signal coming from the sending end (TX) green light (STA) is not on; Long lighting indicates that the sending end and the receiving end work properly.

4：If there is no image display, check whether the display has selected the correct channel input.

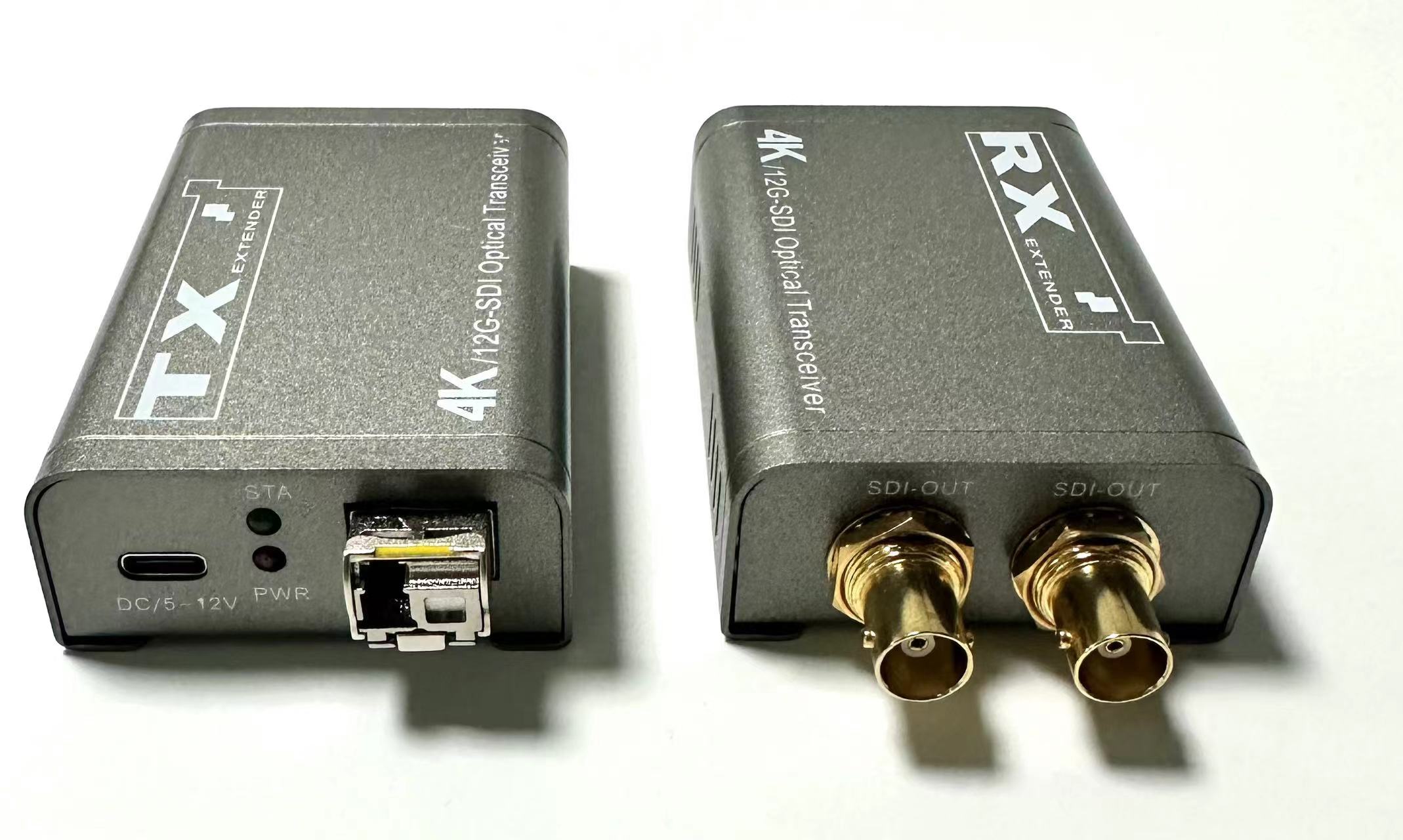

Ⅲ.Product interface pictures

          RX                     TX

Ⅳ.Specification

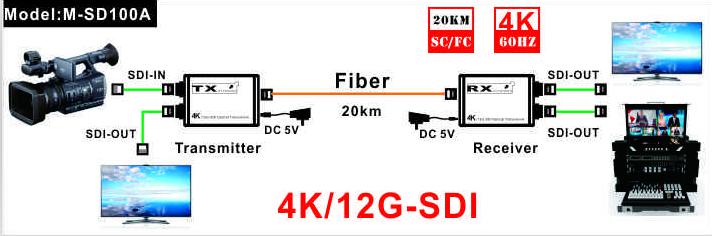

V. Installation Process:

1. Connect the SDI signal source to the SDI extender transmitter; Input port (SDI IN)；

2. Connect the SDI extender receiver to a display device (e.g., SDI matrix, live stream, monitor, etc.)；

3. Use single-mode optical fiber to connect the optical fiber interface of the sending end and the receiving end；

4. Connect the sending end and the receiving end to the power supply. When the indicator lights on normally, the system runs normally.

VI. Package

1. SDI Extender transmitter x1 pc

2. SDI Extender receiver x1 pc

3. power adapters x2pcs

4. User manual x 1 pc
