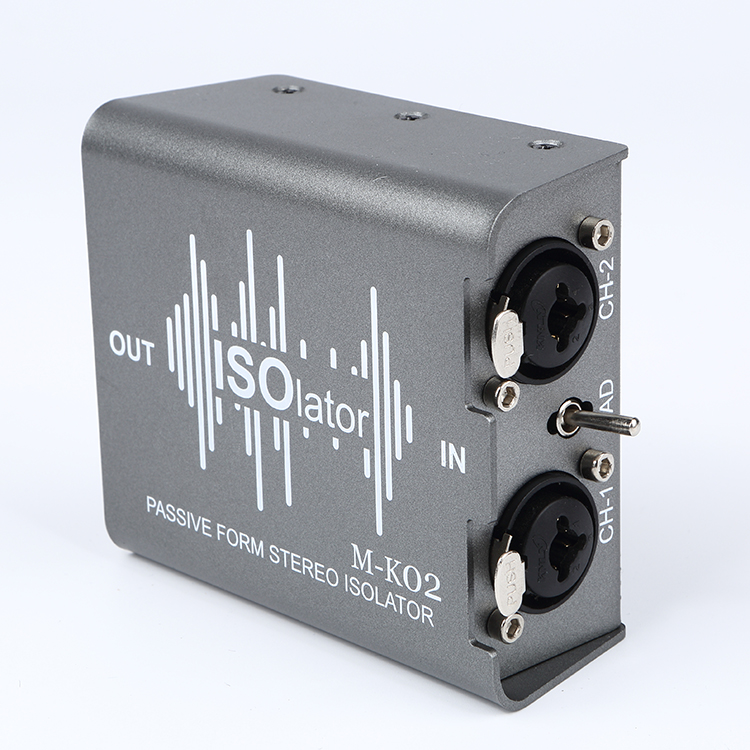

Two Way XLR Audio Isolator【M-K02】

Two way XLR audio isolator

M-K02 XLR audio signal isolator is made of imported alloy materials, to make audio perfect docking. Dual XLR+6.35 input, and dual XRL output. It support balanced/unbalanced signal input/output.

Equipped with common ground and non common ground switches, to isolate the potential difference between the two systems, avoid AC sound interference caused by grounding problems, and prevent damage to equipment caused by excessive potential difference.

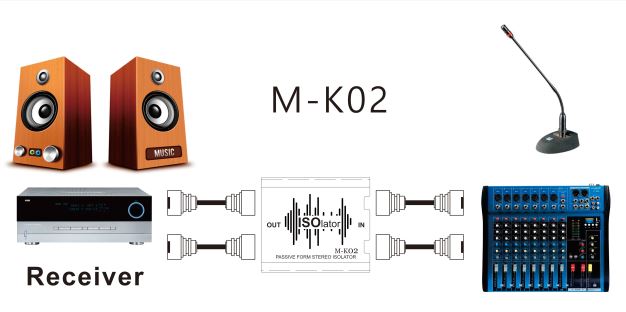

Realize the safe transmission of audio signal and remove the noise generated by long-distance transmission; Remove the noise generated by the connection of camera and audio equipment;Remove the noise generated by the connection between simultaneous interpretation equipment and mixer; Remove the noise generated by connecting the laptop to the mixer; Remove the noise generated by the connection of electronic instruments to the mixer; Remove the noise caused by the impedance mismatch between the equipment and the equipment.

It is also suitable for a series of audio equipment systems such as large-scale outdoor performances, lightning protection, audio engineering, conferences, entertainment places and exhibitions. It is a necessary equipment for the cascade of audio systems.

Technical parameters:

Input impedance: 600Ω (AC impedance)

Output impedance: 600Ω(AC impedance)

Frequency response: 20Hz-20kHz (±<0.3db ref 1khz)

Fixed loss: <0.7db（ref 1khz 1V rms)

Insulation resistance: DC1000V  100MΩ

Isolation voltage: AC 50Hz-60Hz  0V-1500V
