HDMI to AV converter(mini)

Product Description

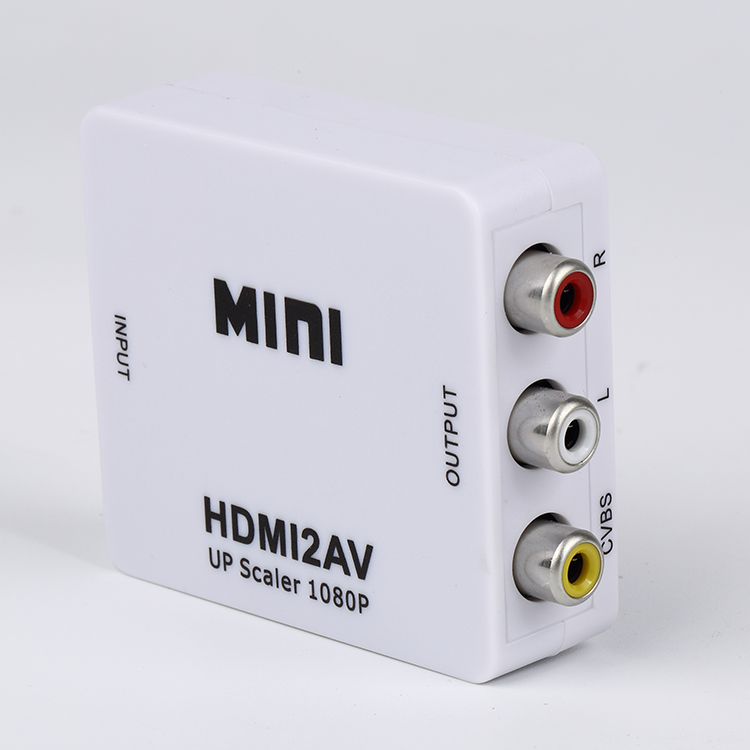

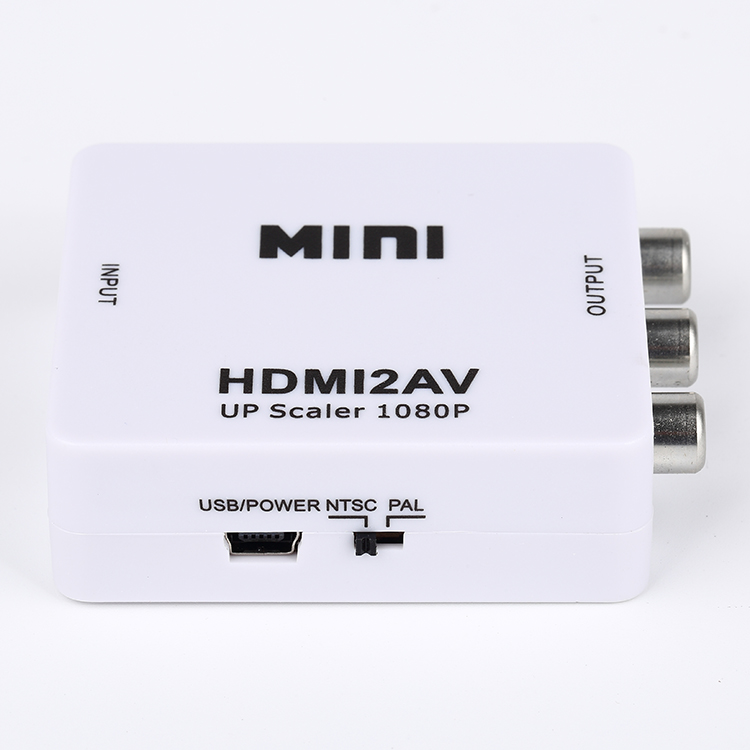

  The Mini HDMI to AV signal converter which will covert HDMI video signal or audio signal to AV.composite video signal and the FL / FR stereo audio signals, while support DVI system sideline signals. Help users convert the high quality of the HDMI video signal into normal CVBS signal(standard definition 480i,576i),So that can play on TV,VHS VCR,DVD recorders,etc.Support NTSC and PAL two TV format.

Features

     1) By added BNC connector, can connect to security camera directly.

     2) HDCP Automatic Identification and remove

     3) Hot plug, no need to install any drivers

     4) Super long hours for 7×24 hours without stop

     5) Compatible HDMI1.3

     6) Support NTSC and PAL two standard TV formats output

     7)By video technological, with the color brightness, color contrast, and so on

Specification

      1)Input:HDMI 1.2/1.3

     2)Output:AV. (CSVB)-CVBS(1.0vPP) S-Video(Y:1.0Vpp),C:0.3Vpp

     3)Power Consumption: +5VDC / 400mA by AC adapter.

     4)HDMI Input Resolution: 480P,576P,720P,1080I,1080P@60Hz

         DVI :800x600,1024x768,1280x720,1280x1024,1920x1080/@60hz

     5)AV Video output:480I,576I

      6) AV Output:  PAL,NTSC3.58,NTSC4.43,SECAM,PAL/M,PAL/N.

    7)Supported Modes: Extended Desktop(Default), Mirrored Desktop, Primary Display

Package

1.HDMI to AV Converter   1 pcs

2.USB cable                     1pcs

3.Manual                         1pcs

Packaging & Shipping

Sample:
We provide sample if you need. The shipping should be paid by customer.

Packing:

Normally, ordered items will be packed in carton boxes for delivery.

Shipping and delivery details:

1) if your order´s quantity is not very big (namely :sample trial order ), most of the items ordered will be sent within the next 2 or 3 working days after payment is confirmed

2) items will be 100% checked by our professional inspector before shipping

3) We will choose DHL, ups ,Fedex or any other express way as discussed!

4) Delivery time is approximately15 to 20 working days (excluding Saturday & Sunday, Public Holiday) to most destinations.
5) We are not responsible for any accidents, delays or other issue aroused by the shipping service. For item´s safety, insurance is highly recommended.
6) Please confirm and make sure the shipping address is correct. We are not responsible for any wrong or undeliverable addresses.

Warranty:
1) Warranty time is 1 year! The warranty period is a year from the date of original purchase.
2) NOTE: Return policy is exchange only, buyer must pay return shipping fee for item.
