mini VGA to HDMI Converter
【M-VHCon】

1.0 Introduction

The VGA 2 HDMI is a high-definition video converter which converts analog PC RGBHV and analog audio signal to digital HDMI signal. It allows you to connect the VGA(HD-15 connector) output from the PC to the digital HDMI input of the latest HD ready plasma, LCD, LED or DLP TV.Its high bandwidth capability supports a wide range of PC and HDTV resolutions.

1.1Features

1. Hassle Free! Plug and play as you go.

2. Low power, No power adapter.

3. HDMI is compliant with HDMI1.3.

4. VGA input Supports up to 1920x1080@60Hz.

2.0 SPECIFICATIONS

l. Input ports: 1xVGA, 1x3.5mmPhoneJack

2. Output ports: 1xHDMI

3. Input/Output Resolution: 640x480@60/72/75/85Hz

800x600@60/72/75/85Hz,1024x768@60/70/75/85Hz.

1152x864@75Hz,1280x720@60Hz

1280x768@60Hz,1280x800@60Hz,

1280x960@60Hz,1280x1024@60Hz,

1360x768@60Hz,1440x1050@60Hz,

1440x900@60Hz,1680x1050@60Hz,

1600x1200@60Hz,1920x1080@60Hz.

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1)Main unit(VGA 2 HDMI Converter)--------------------------1pcs

2) USB cable--------------------------------------------------------1pcs

3) User Manual------------------------------------------------------1pcs

4.0 PANEL DESCRIPTIONS

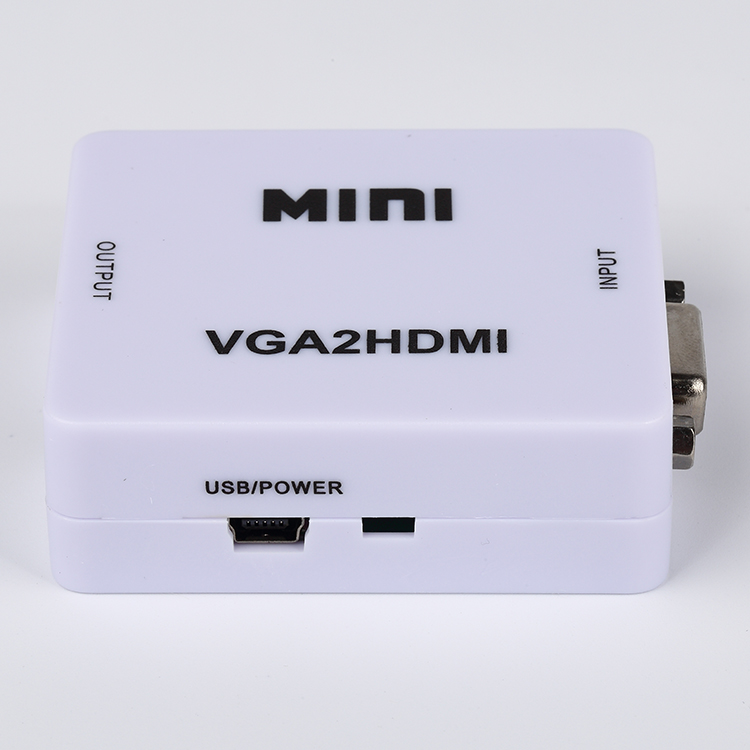

Please study the panel drawings below and become familiar with the signal input(s), output(s)and power requirements.
