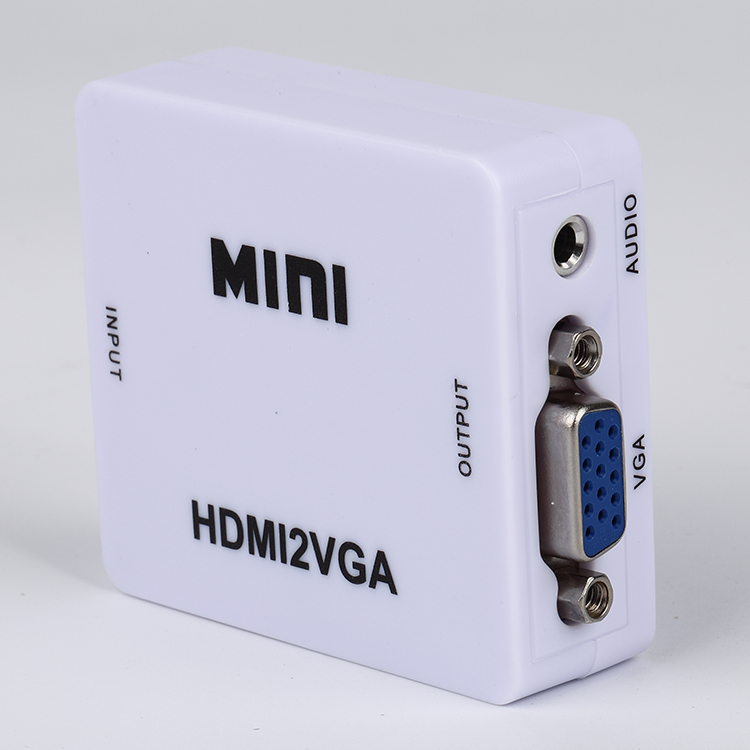

mini HDMI to VGA Converter
【M-HVCon】

Introduction

The HDNI to VGA is a high-definition video converter which

converts HDMI digital signal to VGA analog signal and analog

audio signal.HDMI signals connection PS3,XBOX360, Blue-ray

DVD,HD set-top boxes,CRT-LED Display etc; You can easily watch

HD Video on the normal TV without HDMI Interface.

Features

1.No need to install drivers, portable, flexible, plug and play.

2.Low power, No need Power Supply.

3.Compliant with HDMI 1.3,HDCP 1.4.

4.High bandwidth capability supports 1920x1080 60Hz.

SPECIFICATIONS

1. Input ports:1 x HDMI.

2.Output ports: 1x VGA,1x3.5mm Jack.

3.Dimensions(mm):60(D)x 5(W)x 20(H)

4. Wight (g): 40

Output Resolution:

640x480 60/72/75/85Hz;800x600 60/72/75/85Hz,

1024x768 60/70/75/85Hz; 1152x864 75Hz,1280x720 60Hz,

1280x768 60Hz,1280x800 60Hz,

1280x960 60Hz,1280x1024 60Hz,

1360x768 60Hz,1440x1050 60Hz,

1440x900 60Hz,1680x1050 60Hz,

1600x1200 60Hz,1920x1080 60Hz.

PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1)HDMI to VGA Converter)--------------------------------------1pcs

2) USB cable--------------------------------------------------------1pcs

3) User Manual------------------------------------------------------1pcs
