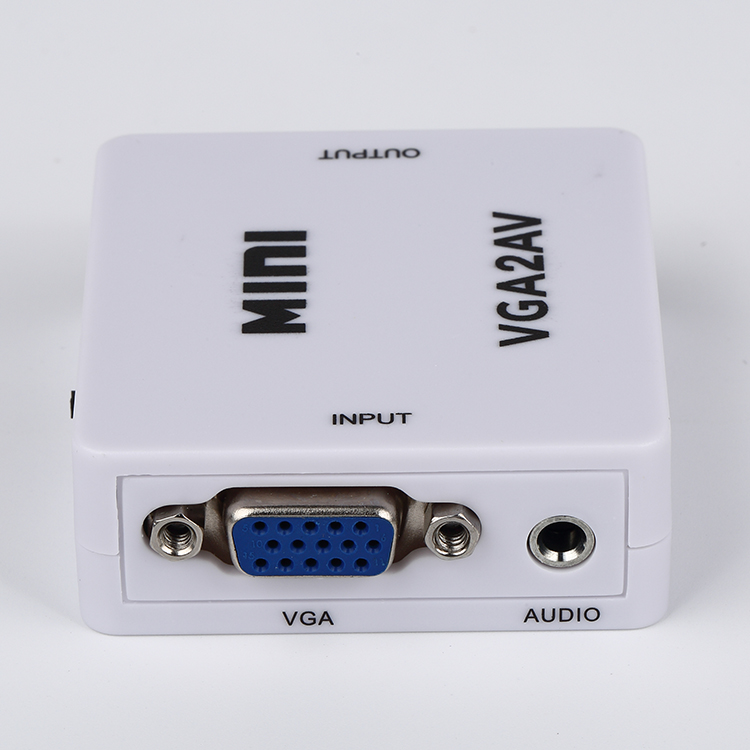

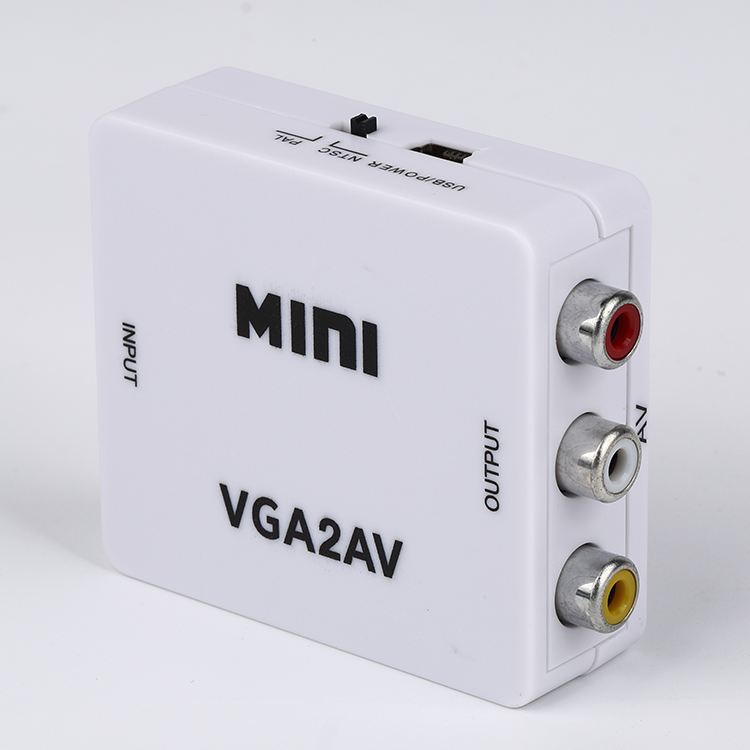

VGA to AV Converter
(plastic case)
【M-VACon】

1. Automatically detects and converts PC input images to NTSC, PAL 2. Support high resolution PC input up to SXGA (@ 60Hz) 3. Support resolution: 640x480 at 60 fps; 800x600 60 fps, 75 fps; 1024x768 60 fps, 75 fps;1280x720 at 60 fps; 1280x768 60 fps, 75fps; 1280x1024 60 fps, 75 fps; 1360x768 at 60 fps1400x1050 60 fps; 1440x900 60 fps; 1680x1050 at 60 fps; 1600x1200 60 fps;1920x1080 60fps;

Product Information：

1.0 Features

1. Automatically detects and converts PC input images to NTSC, PAL

2. Support high resolution PC input up to SXGA (@ 60Hz)

3. Support resolution: 640x480 at 60 fps; 800x600 60 fps, 75 fps; 1024x768 60 fps, 75 fps;1280x720 at 60 fps; 1280x768 60 fps, 75fps; 1280x1024 60 fps, 75 fps; 1360x768 at 60 fps1400x1050 60 fps; 1440x900 60 fps; 1680x1050 at 60 fps; 1600x1200 60 fps;1920x1080 60fps;

2.0 SPECIFICATIONS

1. Frequency Bandwidth: 165 MHZ

2. Input Port : 1 x VGA

3. Output Port: 1 X AV

4. USB power supply source

5. ESD Protection Human Body Model!

+8kV (air-gap discharge)+ kv (contact discharge)

6. Operating Temperature: 0 C ~ 40°C / 32F ~ 104 F

7. Storage Temperature: -20 · C ~ 60· C /-4F~ 140 F

8.Relative Humidity: 20 ~ 90% RH (Non-condensing)

9.Power Consumption: (Max) 2.5 W(Max)

10. Dimensions : (m) 66 (D) x 55 (W) x 20 (H)

3.0 Package Content :

1 x VGA to AV Converter
1 x USB Cable
1x Audio cable

4.0 CONNECTION DIAGRAM
