3KM HDMI Fiber Extender
【M-HF300】

1.Support video resolution up to 1920*1080P@60Hz;1600*1200@60Hz
2.Transmits HDMI video and audio signals up to 3KM over a single Fiber
3.Support one-way embedded independent audio input and output
4.Compliance with HDMI 1.3 and HDCP 1.2 standard 5.High compatibility, can auto-match source and display device 6.Built-in automatic adjustment system, make the image smooth, clear and stable 7.Built-in ESD protection system 8.Simple to install, plug and play, no setup required

Product Information：

I. Introduction

The extender M-HF300 provides extension of hd-mi signals long distances over a single Fiber, it supports loop output. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

II. Features:

1. Transmits hd-mi video and audio signals up to 3-20KM over a single Fiber(default 3KM)
2. Support video resolution up to 1920×1080P@60Hz, 1600×1200@60Hz3
3. Compliance with hd-mi 1.3 and HDCP 1.2 standard
4. High compatibility, can auto-match source and display device
5. Built-in automatic adjustment system, make the image smooth, clear and stable
6. Built-in ESD protection system
7. Simple to install, plug and play

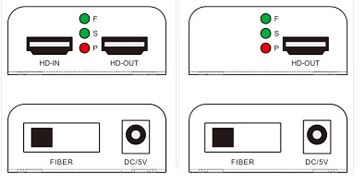

III. Product interface pictures

Port name	Description
HDMI IN/OUT	HDMI signal input/output
Fiber	connect Optical Fiber (SC/FC)
DC/5V	Power adapter socket


LED indicator	Description
P	unit power indicator light
S	HDMI signal indicator light
F	System status indicator light (flashing: in communication)

IV. Specification

Parameter		Description
Video	Standards	hd-mi 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	640×480@60Hz; 800×600@60Hz; 1024×768@60Hz; 1280×720@50Hz; 1280×720@60Hz; 1280×768@60Hz; 1280×800@60Hz; 1280×960@60Hz; 1280× 1024@60Hz; 1360×768@60Hz; 1400×1050@60Hz; 1440×900@60Hz; 1600×1200@60Hz; 1680×1050 @60Hz; 1920×1200@60Hz; 1920×1080i@60Hz ; 1920×1080@50Hz; 1920×1080 @60Hz
	Connector	hd-mi-A
	Impedance	100Ω
Fiber	Interface	SC/FC(default SC)
	Fiber Model	Single mode
	wavelength	Single mode 1310nm；1550nm
	bandwidth	6.25Gbps
	Transmission distance	Default standard 3KM, MAX up to 20KM
Other	Power supply	The power adapter: DC 5V/1A
	Power dissipation	MAX 3W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	957326mm

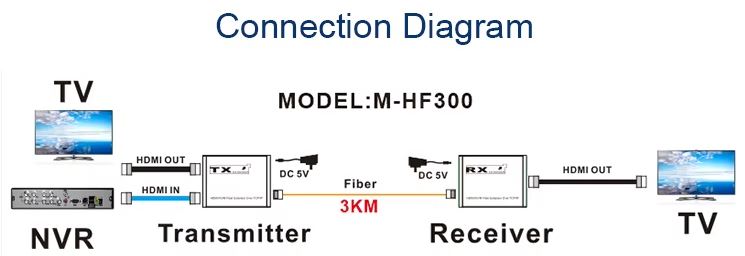

V. Installation Process:

1.Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver

2.Connect an HD cable between the HD input port of transmitter and the HD output port of the video source

3.Connect the HD output port of receiver to the display device with HD cable, Connect the transmitter Fiber port to

the receiver Fiber port using a single Optical fiber

4.Power on Transmitter and Receiver

VI. Package

1. HDMI transmitter x1 pcs
2. HDMI receiver    x1 pcs
3. USB cable        x1 pcs
4. Power adapter    x2 pcs
5. User manual      x1 pcs
