3KM HDMI+KVM Fiber Extender【M-HF300U】
2.Transmits HDMI video and audio signals up to 3KM over a single Fiber
3.Support keyboard and mouse
4.Support one-way embedded independent audio input and output
5.Compliance with HDMI 1.3
6.Compliance with HDCP 1.2 standard
7.High compatibility, can auto-match source and display device
8.Built-in automatic adjustment system, make the image smooth, clear and stable
9.Built-in ESD protection system
10.Simple to install, plug and play, no setup required
I. Introduction
The extender M-HF300U provides extension of HDMI signals long distances over a single Fiber, it supports loop output. It supports KVM, to operate remote devices using keyboard and mouse, embedded audio input and output. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
II. Features:
1. Transmits HDMI video and audio signals up to 20KM over a single Fiber(default 3KM)
2. Support video resolution up to 1920×1200P@60Hz, 1600×1200@60Hz
3. Support KVM, to operate remote devices using keyboard and mouse
4. Support embedded audio input and output
5. Compliance with HDMI 1.3 and HDCP 1.2 standard
6. High compatibility, can auto-match source and display device
7. Built-in automatic adjustment system, make the image smooth, clear and stable
8. Built-in ESD protection system
9. Simple to install, plug and play

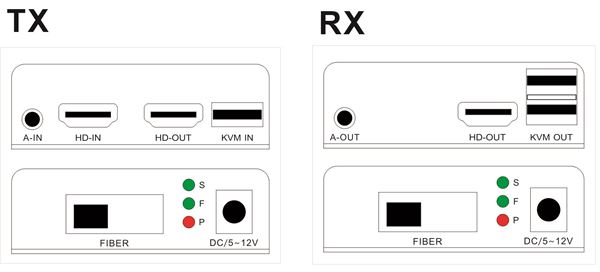

III. Product interface pictures
|
HDMI IN/OUT |
HDMI signal input/output |
|
Fiber |
connect Optical Fiber (SC/FC) |
|
DC/5V |
|
|
A-IN/A-OUT |
Audio Input/Output |
|
KVM IN/KVM OUT |
Keyboard and Mouse Input/Output |
|
P |
unit power indicator light |
|
S |
HDMI signal indicator light |
|
F |
System status indicator light (flashing: in communication) |
IV. Specification
Description Parameter Video Standards HDMI 1.3; HDCP 1.2 Maximum pixel clock 165MHz Maximum data rate 6.75Gbps Resolution 640×480@60Hz; 800×600@60Hz; 1024×768@60Hz; 1280×720@50Hz; 1280×720@60Hz; 1280×768@60Hz; 1280×800@60Hz; 1280×960@60Hz; 1280×1024@60Hz; 1360×768@60Hz; 1400×1050@60Hz; 1440×900@60Hz; 1600×1200@60Hz; 1680×1050 @60Hz; 1920×1200@60Hz; 1920×1080i@60Hz ; 1920×1080@50Hz; 1920×1080 @60Hz Connector HDMI-A Impedance 100Ω Suggest using less than 5 meters HDMI cables to connect Audio Interface 3.5mm Signal type Embedded unidirectional stereo audio USB USB IN USB-B Input USB OUT USB-A Output Fiber Interface SC/FC/LC(default SC) Fiber Model Single mode wavelength Single mode 1310nm；1550nm Transmission distance Default standard 3KM, MAX up to 20KM Other Power supply The power adapter: DC 5V/1A Power dissipation MAX 3W Temperature Operating: -5℃ ~ +70℃ Humidity Operating: 5% ~ 90% Dimension 95*73*26mm

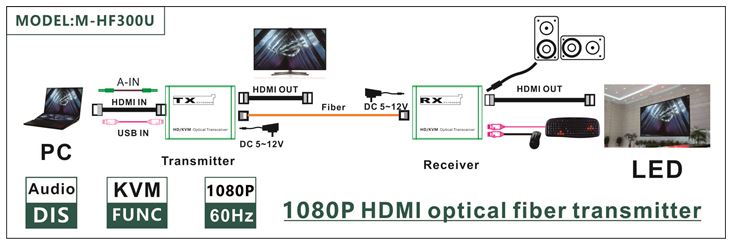

V. Installation Process:
1. Connect the HDMI input port of transmitter to the HDMI output port
of the video source with HDMI cable
2. Connect the HDMI output port of receiver to the display device with
HDMI cable
3. Connect the transmitter Fiber port to the receiver Fiber port using a
single Optical fiber
4. Connect the audio input and output with a 3.5mm male audio cable
5. Connect the keyboard and mouse signals from the transmitter to the
computer host or DVR NVR with USB cable, connect Keyboard and
mouse to the receiver
6. Power on Transmitter and Receiver
VI. Package
1. HDMI transmitter x1 pcs
2. HDMI receiver x1 pcs
3. USB cable x1 pcs
4. Power adapter x2 pcs
5. User manual x1 pcs
