200M VGA+KVM Extender Over TCP/IP【M-V200U】
2.Transmits VGA video and audio signals up to 200M over a single Cat5e/6 cable, automatic identification no need to adjust the gain

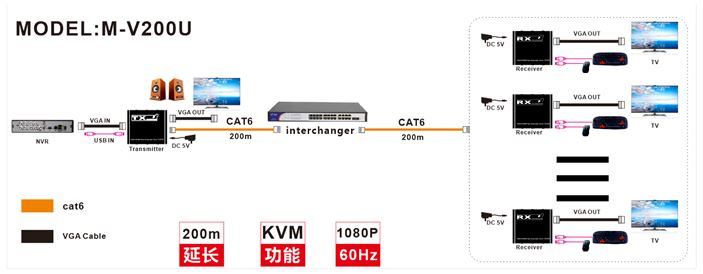

3.Support over TCP/IP, support one TX to more RX Support multiple in and multiple out through switch
4.Support KVM function
5.Support Audio input/output
6.Support VGA loop output
7.High compatibility, can auto-match source and display device
7.Built-in automatic adjustment system, make the image smooth, clear and stable
8.Built-in ESD protection system
9.Simple to install, plug and play
I. Introduction
The extender provides extension of VGA signals long distances over a single Cat5e/6 cable, it supports high resolution up to 1080P, KVM and Audio signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
II. Features
1. Transmits VGA video and audio signals up to 200 meters over a single Cat5e/6 cable, automatic identification, no need to adjust the gain
2. Support video resolution up to 1920*1080P@60Hz
3. Support over TCP/IP, support one TX to more RX
4. Support keyboard and mouse
5. Support Audio input/output
6. Support VGA loop output
7. High compatibility, can auto-match source and display device
8. Built-in automatic adjustment system, make the image smooth, clear and stable
9. Built-in ESD protection system
10. Simple to install, plug and play
III. Specification
|
Description |
Parameter | |
|
Video |
Signal type |
VGA Signal |
|
Maximum pixel clock |
380MHz | |
|
Maximum data rate |
6.75Gbps | |
|
640x480@60Hz/800x600@60Hz/1024x768@60Hz/1280x720@60Hz/1280x1024@60Hz/ 1360x768@60Hz/1920x1080@60Hz/1400x1050@60Hz/1440x1050@60Hz/1440x900@60Hz/ 1920x1200@60Hz/1920x1080@60Hz/1920x1080i@60Hz/1920x1080@50Hz/1920x1080i@50Hz | ||
|
Impedance |
75Ω | |
|
Audio |
Interface |
3.5mm seat |
|
Signal type |
Stereo | |
|
USB |
Interface |
PC: USB interface; connect to pc; K/M: connect USB keyboard and mouse; |
|
UTP |
Interface |
RJ45 |
|
Cat6-200m MAX | ||
|
Other |
The power adapter: DC 5V/1A | |
|
MAX 5W | ||
|
Operating: -5℃ ~ +70℃ | ||
|
Operating: 5% ~ 90% | ||
|
126*102*28mm | ||
IV. Product interface pictures

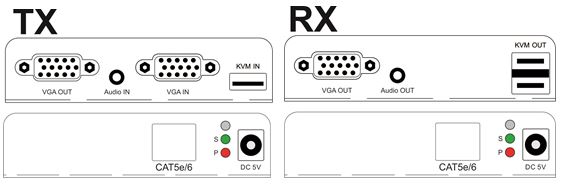

VGA IN/OUT VGA signal input/output KVM IN/OUT USB signal input/output Cat5e/6 RJ45 port connect cat5e/cat6 Audio IN/OUT Audio signal input/output<, /P> DC/5V ID Channel switch LED indicator P S VGA signal indicator
V. Installation Process
1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver
2. Connect an VGA cable between the VGA input port of transmitter and the VGA output port of the video source
3. Connect the VGA output port of receiver to the display device with VGA cable, Connect the transmitter UTP port to the receiver UTP port using a single Cat5e/6 cable
4. Connect transmitter PC IN port to PC using mini USB cable
5. Connect USB keyboard and mouse to Receiver K/M port
6. Connect the audio input/output using a 3.5 M/M audio cable
7. Power on Transmitter and Receiver
VI. Package
1. VGA transmitter x1 pcs
2. VGA receiver x1 pcs
3. USB Cable x1 pcs
4. Power adapter x2 pcs
5. User manual x1 pcs
