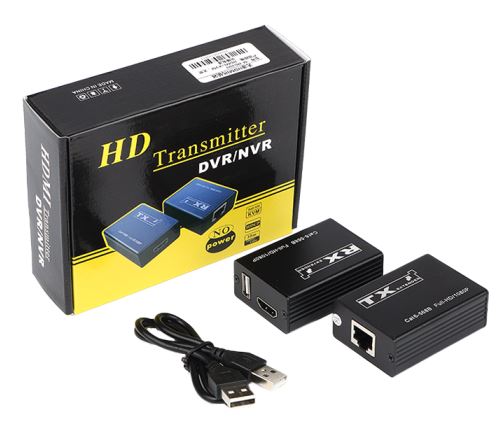

1080P 30M HD+KVM Extender Over CAT6【M-HD30U】

Introduction

Used for a pair extension of this HDMI Cat6 cable to extend HD signal up to 30 meters, and can achieve 1080P, which not only broke the HDMI cable transmission length limitations, but also more convenient and flexible, and new model with KVM function can be selected, cost savings for more customers.
We designed this extender specifically for  CCTV, such as: DVR, NVR hard disk video recorder.

Features

1. Support 1080P, supports 165MHz/165Gbps single channel (4.95Gbps all channels) bandwidth
2. Support KVM function (optional model function)
3. Single cat6(recommended) cable can up to 30 meters, the resolution can up to 1080P
4. Follow the standard of IEEE-568B
5. No power required
6. Plug and play
7. No loss of quality

Connection and Operation

1. Plug the sender of the HDMI extender into the HDMI signal source, such as: CCTV, DVR, NVR hard disk video recorder.
2. Connect one Cat6 cable to the sender and the receiver.
3. Plug the receiver of the HDMI extender into the HDMI display, such as: HD-LCD.
4.  (Optional model function) Connect the KVM port of TX to the signal source (for example, DVR, NVR) with USB cable, and connect the KVM port of RX to the wired mouse
