1080P 60M HD+KVM Extender Over CAT5e/6【M-HD60U】

1.Support Video input/output: 1080p/1080i/720p/576p/480p 480i@24/50/60Hz
2.Signal transmission: Single Cat-6 cable up to 60M
3.Support IR function
4.Support keyboard and mouse
5.Support uncompressed audio transmission, as LPCM
6.Support HDMI 1.3; compatible with HDCP1.1&1.2
7.Automatic identification various display modes
8.Built in automatic equalization system, the picture is smooth, clear and stable
9.Built in ESD protection circuit, plug and play
10.No loss of quality
To Purchase Products
Product Information:

Description



The HDMI KVM Extender use single Cat-6 cables to transmit high definition signal up to 60 meters, and can achieve 1080P, for cutting down cost, support KVM control and IR function.
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.



Features

Support EDID; support HDMI 1.3;compatible with HDCP1.2
Support video input/output : 1080p/1080i/720p/576p/480p/480i@24/50/60Hz
Signal transmission: Single Cat-6 cable up to 60 meters
Support IR function
Support keyboard and mouse
Support uncompressed audio transmission, as LPCM
Automatic identification various display modes
Built in automatic equalization system, the picture is smooth, clear and stable
Built in ESD protection circuit, plug and play
No loss of quality



Specifications



Transmission distance

Up to 60 meters

HDMI Input/Output

1080p/1080i/720p/576p/480p/480i@24/50/60Hz

Support audio format input/output

DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD

IR control

Unidirectional, 3.5mm, 38KHz

KVM control

USB IN: USB-B Signal input

USB-OUT: USB-A standard interface

Max transmission bandwidth

6.75Gbps

Input Video signal

0.5~1.5Volts p-p

Output DDC signal

5Volts p-p (TTL)

Max working current

400mA

HDMI cable distance

15m AWG26 HDMI 1.3 standard cable

Operating Temperature range

-15°C~75°C

Operating Humidity range

5%-90%RH (No Condensation)

Dimension (L x W x H)

95*73*26mm

































































































Note:
In order to achieve better transmission quality image, please use the CAT-6 cable.
The low quality of the cable, can not achieve the best effect of video transmission and transmission distance.
If the product can not achieve the transmission distance of 60 meters, please check the wire quality.

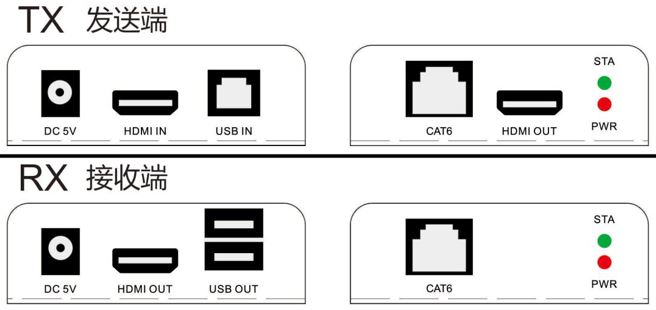

Panel



Port name

Description

Input/Output

HDMI signal input/output

CAT6

Ethernet interface

USB IN/OUT

USB input/output port

IR TX/RX

IR input/output port

DC/5V

Power adapter socket

LED indicator

Description

STA

Video signal connection indicator

PWR

System power indicator

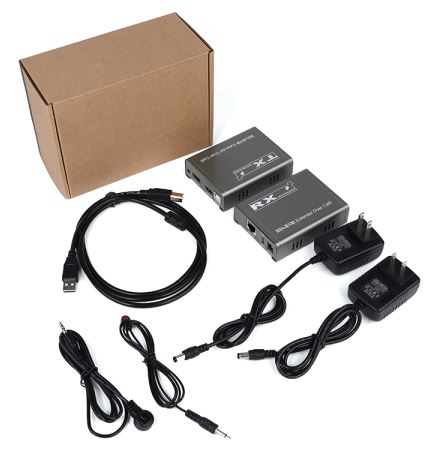

Package

HDMI transmitter …………………1 pcs
HDMI receiver ………………………1 pcs
USB-B Cable …………………………1 pcs
IR Cable ………………………………1 set
Power adapter ………………………2 pcs
User manual ……………………………1 pcs



Installation



1. Connect one HDMI cable between source device and TX of HDMI KVM Extender
2. Connect one HDMI cable between display equipment and RX of HDMI KVM Extender
3. Connect USB signal source to the transmitter of HDMI KVM Extender
4. Connect keyboard and mouse to the receiver of HDMI KVM Extender
5. Connect IR-TX with IR transmitting line or IR-RX with IR receiving line
6. Connect single cat-6 cables between TX and RX
7. Connect 5V power supply to the HDMI RX&TX Extender

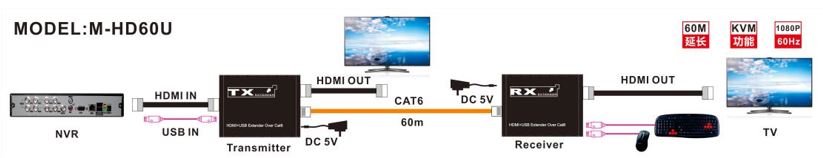

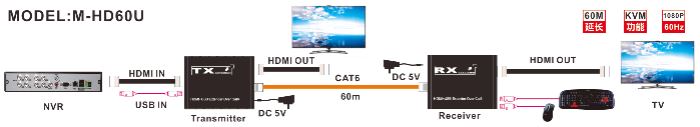

Diagram
