20KM 1080P All Digital SDI Fiber Extender
【M-SD100PRO】
2.Long distance transmission of 3G/HD-SDI video and audio signals through optical fiber, up to 20KM
3.Support local output, the remote end support two-way synchronous output
4.Can be powered by back buckle battery
5.Support all digital lossless transmission, 8-channel embedded audio and video synchronous transmission
6.Support PAL/NTSC, strong compatibility, able to automatically identify and configure various display modes
7.Support plug and play and hot plug
8.Built-in automatic adjustment system, make the image smooth, clear and stable
9.Built-in ESD protection system
10.Simple to install, plug and play
I.Introduction
M-SD100PRO the fiber extender transmits 3G/HD-SDI video signals over a long distance through a single fiber cable, and supports 8-channel embedded audio synchronization function; It can adapt to a variety of complex application environments.
The equipment has excellent image processing and transmission capabilities, making the signal transmission more smooth and stable. It is a reliable, high performance and efficient 3G/HD-SDI signal extension mode.
II.Features
1. Long distance transmission of 3G/HD-SDI video and audio signals through optical fiber, up to 3-20KM (default 3KM)
2. HD video signal resolution up to 1920*1080P@60Hz
3. Support all digital lossless transmission, 8-channel embedded audio and video synchronous transmission
4. Support local output, the remote end support two-way synchronous output
5. Support PAL/NTSC, strong compatibility, able to automatically identify and configure various display modes
6. Support plug and play and hot plug
7. Built-in automatic adjustment system, make the image smooth, clear and stable
8. Built-in ESD protection system
9. Simple to install, plug and play
Troubleshooting
1. The red light (PWR) is not bright or the brightness is low, Check whether the power adapter is normal
2. When TX green light (STA) is not on; Check the signal source; The green light stays on indicates regular work.
3. RX green light (STA) is not on, check whether the optical fiber module of the TX contacts normally; The green light (STA) is not on when there is no signal from the TX; Long light indicates that TX and RX work normally.
4. If there is no image on the display, check whether the display selects the correct channel input

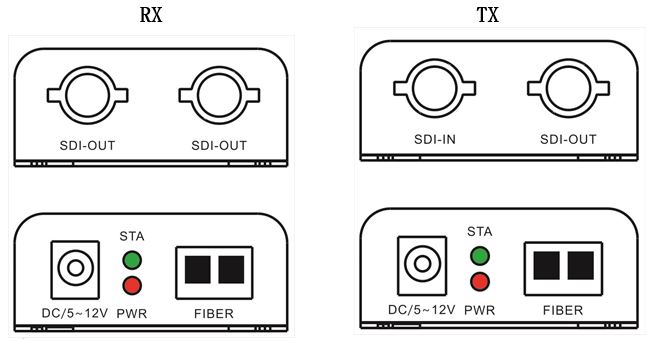

III. Product Interface
SDI IN/OUT SDI signal input/output Fiber Fiber Interface（LC） DC/5~12V PWR STA SDI signal indicator
IV.Specification
Parameter Description Video Technical Norms SMPTE standard Video bit rate MAX 3.2 GB/Second Interface BNC Input/output cable specification ≤150m（Belden 1694A cable standard） Video input/output impedance 75Ω Video input / output voltage 1Vpp; Min: 0.5Vpp/ Max: 1.5Vpp Differential gain (10% ~ 90% APL) <1% SDI resolution 625/25 PAL 525/29.97NTSC, 525/23.98 NTSC 720P@50, 720P@59.94 1080i@23/24/30/50/59.94, 1080P@23.98/24/30/50/60 Support SDI specification 270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI) SMPTE425M3Gb/s Mapping(3G-SDI） SMPTE424M 3Gb/s serial interface(3G-SDI) Fiber Optical fiber interface LC Fiber type Single mode single fiber wavelength Single mode 1310nm；1550nm Max transmission distance Default: 3KM；Max: 20KM Other Power DC 5~12V/1A Power Consumption MAX 5W Temperature Operating temperature: -20℃ ~ +70℃ Humidity Operating humidity: 0 ~ 90% Mean time between failures ≥100000hours Size 82*57*27mm

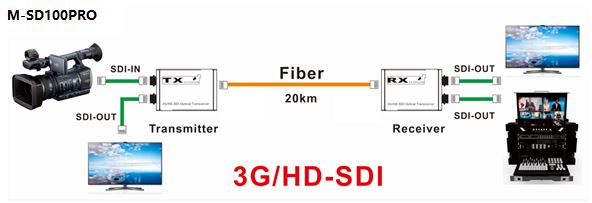

V.Installation Process
1. Connect the SDI signal source to the input(SDI IN) of the TX
2. Connect the RX to the display device (such as SDI matrix, live broadcast, monitor, etc.)
3. Connect the optical fiber interface between the TX and the RX with single mode fiber cable
4. Connect the provided DC/5V(12V) power supplies to the power socket of the TX and the RX
VI. Package
1. SDI extender TX x1pcs
2. SDI extender RX x1pcs
3. Power adapter x2pcs
4. User manual x1 pcs
