4K 200M HDMI+KVM Extender Over CAT5e/6【M-HK200U】
Introduction
The HDMI extender adopts the standard Ethernet TCP/IP protocol, with H.265 technology made of a high quality network extender.
Long distance transmission of high-definition audio and video signals through a single network cable, can be achieved by Ethernet network one-to-many, many-to-many, many-to-one applications,at the same time, the attached infrared extension function makes remote control more convenient.
The device has excellent image processing and transmission capabilities, so that the signal transmission is more smooth and stable, is a cost-effective HDMI signal network extension transmission mode.
Features
HDMI video and audio signals are transmitted over long distances of up to 200 meters over a network cable;
High definition video signal resolution up to 3840*2160@30Hz;
Using H.265 technology to compress and decompress video, effectively improve the transmission efficiency, ensure the smooth playback;
Compatible with HDMI 1.4 standard;
Comply with HDCP 1.4 standard - high bandwidth digital content protection technology;
Can easily control the remote equipment;
Supports KVM, mouse, and keyboard control;

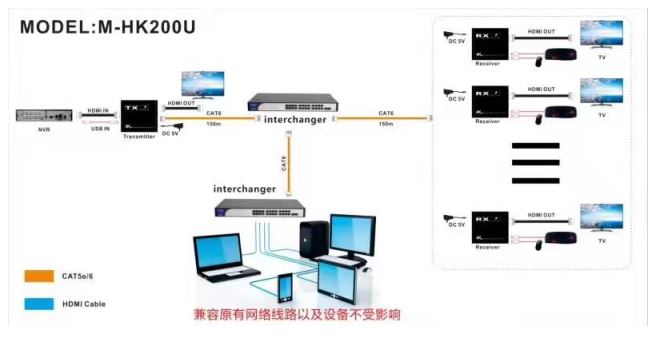

1 to 1 is supported. 1 to many; Multi - in multi - out transmission with different requirements；
Built-in automatic balancing system, picture smooth, clear, stable;
Built-in ESD electrostatic protection circuit, all-round protection system safety;
Easy to install, plug and play, no need to set;
Specification
Parameter Description Video support agreement HDMI 1.4; HDCP 1.4 Pixel bandwidth 225MHz，full-digital Interface Width total bandwidth10.2Gbps Max support resolution 3840*2160@30Hz and downward compatibility HDMI-A port Impedance 100Ω Recommended max HDMI input/output distance Less than 5 meters, at 3840*2160@30Hz infrared Port 3.5mm stereo audio socket signal direction unidirectional transmission Signal Type digital signal Input level carrier frequency Broadband20~60KHz KVM Port PC terminal：USB-B microusb Keyboard and mouse：USB-Astandard interface Network port Port Standard RJ45 port Recommended max transmission distance Cat5e - 130meters； Cat6 network cable - 150meters Other Power power adapter：DC 5/1A Power dissipation MAX 8W Temperature Operation temperature：-5℃ ~ +70℃ Humidity Operation Humidity：5% ~ 90% Dimensions 105*71*26mm Warranty 1 year free warranty
Interface
Port name Description HDMI IN/OUT HDMI Signal input/output IR IN/OUT Infrared input/output UTP network port DC 5~12V Power adapter input RESET System reset button, long press 5 seconds to restore the default value LED indicator Description STATUS System status indicator(On: Operating normally, blinking: communicating) POWER POWER LED
Installation Process
1、Connect the HDMI signal source to the sender of the HDMI extender
2、Connect the HDMI extender receiver to the display device (e.g. HD TV, splice screen, etc.)
3、Use Class 5 network cables or Class 6 network cables to connect thenetwork interface between the sending end and the receiving end
4、Configure the infrared backcontrol function: Connect the infrared transmitting line to the transmitting end of the extender, and connect the infrared receiving line to the receiving end of the extender. Align the infrared transmitting head with the infrared receiving port of the device to be controlled
5、Connect the sending end and the receiving end to the power supply. When the indicator lights on normally, the system runs normally.
Package
HDMI extender transmitter 1 PC
HDMI extender receiver 1 PC
Power adapter 1PC
Infrared transmitting and receiving heads 2PCS
Instruction manual 1PC
