1080P 60M DVI Extender Over CAT5e/6【M-DH60(DVI)】

1.Support video input/output : 1080p/1080i/720p/576p/480p/480i@24/50/60Hz
2.Signal transmission: Single Cat-6 cable up to 60M
3.Support Uncompressed audio dual channel audio transmission such as LPCM
4.Support POC power supply
5.Compliance with HDCP1.2
6.Follow the standard of IEEE-568B
7.Can automatically identify and configure various display modes
8.Built-in automatic balancing system, the picture is smooth, clear and stable
9.Built-in ESD electrostatic protection circuit, plug and play
To Purchase Products
Product Information:

Description

Used for a pair extension of this DVI CAT6 cable to extend HD signal up to 60 meters, and can achieve 1080P, for cutting down cost.
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.



Features



1.Compatible with HDCP1.2
2.Support POC power supply
3.Support video input/output :1080p/1080i/720p/576p/480p/480i@24/50/60Hz
4.Signal transmission: Single Cat-6 cable up to 60 meters
5.Support uncompressed audio transmission, as LPCM
6.Automatic identification various display modes
7.Built in automatic equalization system, the picture is smooth, clear and stable
8.Built in ESD protection circuit, plug and play
9.No loss of quality

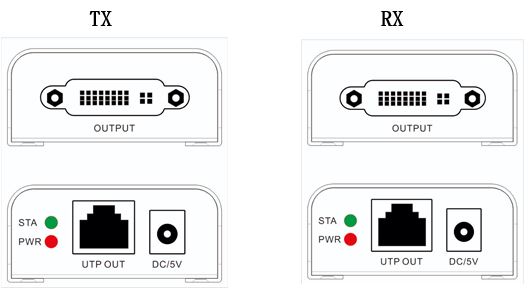

Panel Description

Port name

Description

Input/Output

DVI signal input/output

UTP IN/OUT

Ethernet interface

DC/5V

Power adapter socket

LED indicator

Description

PWR

System power indicator

STA

Video signal connection indicator





























Specification



Distance

Up to 60 meters

DVI Input/Output

1080p/1080i/720p/576p/576i/480p/480i@24/50/60Hz

Support audio format Input/Output

DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD

Max transmission bandwidth

6.75Gbps

Input Video signal

0.5~1.5Volts p-p

Output DDC signal

5Volts p-p (TTL)

HDMI cable distance

15m DVI cable

Max working current

400mA

Power adapter format

DC5V/1 A

Operating Temperature range

(-15 to +75°C)

Operating Humidity range

5 to 90%RH (No Condensation)

Dimension (L x W x H)

81*53*26 (mm)















































Note:
A. In order to achieve better transmission quality image, please use the CAT-6 cable.
B. The low quality of the cable, can not achieve the best effect of video transmission and transmission distance.
C. If the product can not achieve the transmission distance of 60 meters, please check the wire quality.

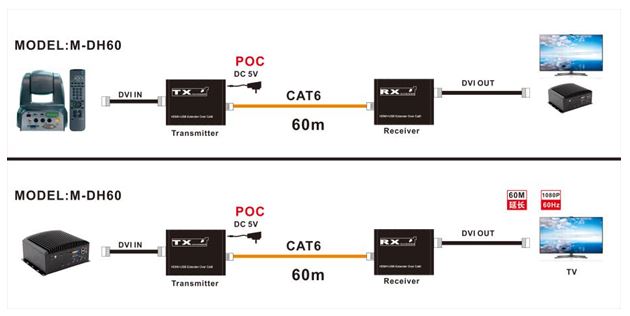

Installation
1. Connect one DVI cable between source device and TX Extender.
2. Connect one DVI cable between sink device and RX Extender.
3. Connect single cat-6 cables up to 60 meters instead of DVI cable between TX and RX.
4. Connect 5V power supply to the RX and TX.



Package

1.DVI Extender TX x1pc
2.DVI Extender RX x1pc
3.Power adapter   x2pcs
4.User manual     x 1pc
