AHD/TVI/CVI/CVBS to HD/VGA/CVBS Converter
【M-AHD2.1】
2.HDMI Output compatible with HDCP, HDMI1.4
3.Supports both NTSC（720*480)/PAL（720*576）Video inputs-Automatic detection
4.HD output resolution:720P@50/60Hz, 1080P@50/60Hz
5.VGA output resolution:800x600@60Hz, 1024x768@60Hz, 1366x768@60Hz, 1280x720@60Hz, 1920x1080@60Hz
6.Selectable output by physical button on the device
7.Supports AHD-5MP; TVI-5MP; CVI-2MP
1.Product Introduction
The AHD/TVI/CVI/CVBS to HDMI/VGA/CVBS video converter can convert AHD/TVI/CVI/CVBS video Signal to HDMI/VGA/CVBS output by digital processing. It allows you to display any AHD/TVI/CVI/CVBS camera (720P/1080P) directly on any type display monitor such as HD TV by HDMI, PC Monitor by VGA and even Analog CCTV monitor by CVBS
2.Features
1. Converts AHD/TVI/CVI/CVBS signal to HDMI/VGA/ CVBS
2. HDMI Output compatible with HDCP, HDMI1.4
3. HDMI output resolution: 720P@50/60Hz, 1080P@50/60Hz
4. VGA output resolution: 800x600@60Hz, 1024x768@60Hz, 1366x768@60Hz, 1280x720@60Hz, 1920x1080@60Hz
5. Selectable output by physical button on the device
6. Supports both NTSC（720*480）/PAL（720*576） Video inputs –Automatic detection
7. Supports AHD-5MP; TVI-5MP; CVI-2MP
3.Product Interface
Marking Description S1 Button - Switch output channel S2 Button - Switch resolution D1 HDMI Indicator D2 VGA Indicator D3 AV Indicator POWER Power indicator

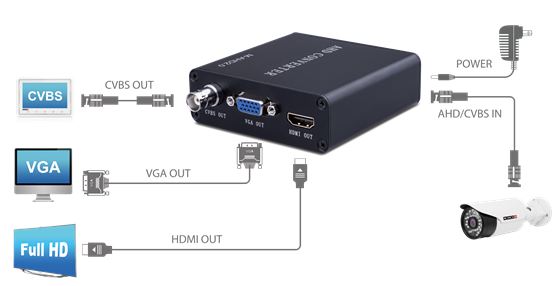

4.Installation Process
1.Connect the AHD/TVI/CVI/CVBS Source to the AHD/TVI/CVI/CVBS input using Coax cable.
2.Connect the converter to the HDMI/VGA/CVBS display.
3.Connect the converter to power source using the supplied power supply.
4.Use the S1/S2 button to switch between outputs and resolutions.
5.Package
1.Converter x1pcs
2.Power 5V x1pcs
3.User Manual x1pcs
