SDI/HDMI Wireless Extender【M-SW50】

I. Introduction
The wireless transmission transmits high-definition audio and video signals through Dual band (2.4G/5.8G) wireless WIFI signals, which can adapt to a variety of complex application environments. The device has excellent image processing and transmission capabilities, making the signal transmission more smooth and stable. It is a reliable, high-performance and efficient SDI/ HDMI signal extension mode.

II. Features
1. Transmit SDI/ HDMI video and audio signals over Dual band(2.4G/5.8G) wireless up to 100m (328ft)
2. Support video resolution up to 1920*1080P@60Hz
3. Supports one TX and one RX, support one TX and four RX at most
4. The special format H.265 is used to compress and decompress the video, improve the transmission   efficiency and make the playback more smooth
5. Transmission stream: 4Mbps~8Mbps
6. Adopting GENNUM video processing technology, it has higher compatibility
7. Support NP-F series battery: NP-F550 (2400mAh); NP-F750(4400mah)； NP-F970(6600mah)
8. Built-in ESD protection system
9. Simple to install, plug and play

III. Installation Process:
1. Connect TX to the power supply, both P/W lights up; Connect SDI/HDMI signal source (can only recognize one signal; default SDI input)
2. Connect RX to the power supply, both P/W lights up; Connect SDI/HDMI display device, support SDI/HDMI output at the same time
3. Connect TX and RX, when the indicator light P stays on, the light W flashes rapidly, the corresponding S/H light is on, the system is working normally.

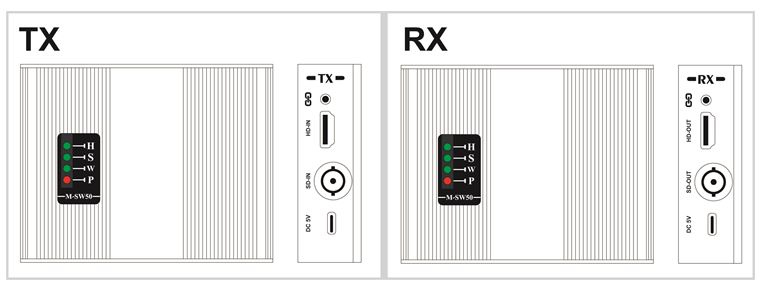

IV. Product interface pictures

V. Specification

VI. Package
1. Transmitter x1 pcs

2. Rceiver x1 pcs
3. antenna x4 pcs

4. Power adapter x2 pcs
5. SDI cable x 1 pcs

6. User manual x1 pcs

VII. Pairing mode
a. One to one, paired well before leaving the factory

b. When one to many, you need to pair according to the following steps:

1. Power on TX and RX, wait for 10-20 seconds, P (red light) and W (green light) of TX and RX will be on for a long time; When powered on, press the pairing keys  of TX and RX separately until the W light flashes quickly
2. Connect the HDMI cable between the HD-OUT of RX and the HD-IN of TX (Note: the HDMI cable is connected to RX first and then TX); At this time, the W (green light) of RX will change from flashing to stay on, and the W (green light) of TX will flash, pairing is successful.
4. When pairing, the W of RX keeps flashing for more than 5 seconds, which may indicate pairing failure. Please power off and re-pair.
5. Note: After successful pairing, power on again and normal connection for use.

VIII. Trouble shooting

a. When RX and TX are not connected to WIFI signals, it will show "Searching TX";
b. When TX is connected to RX, but TX does not detect HDMI input signal, it will show "Check TX’s input signal"；
c. When the resolution is not supported, it will show "Not supported, change source resolution!".

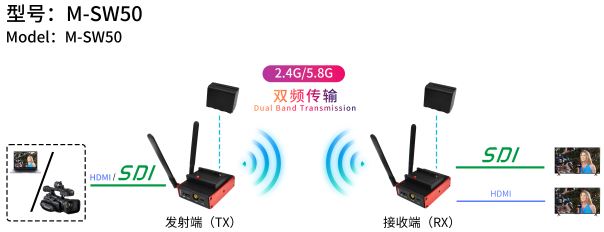

IX. Connection diagram
