DP+KVM Extender over Fiber
【M-DP200U】
1.Transmits DP video and audio signals up to 20KM over a single Fiber
2.Support video resolution up to 1920×1200P@60Hz, 1600×1200@60Hz
3.Support KVM, to operate remote devices using keyboard and mouse
4.Support embedded audio input and output
5.Compliant with DP V1.3 standard, Compliance with HDCP1.2 standard-High bandwidth digital protection technology
6.High compatibility, can auto-match source and display device
7.Built-in automatic adjustment system, make the image smooth, clear and stable
8.Built-in ESD protection system
9.Simple to install, plug and play
I. Introduction
The extender M-DP200U provides extension of DP signals long distances over a single Fiber. It supports KVM, to operate remote devices using keyboard and mouse, embedded audio input and output. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
II. Features:
1. Transmits DP video and audio signals up to 20KM over a single Fiber
2. Support video resolution up to 1920×1200P@60Hz, 1600×1200@60Hz
3. Support KVM, to operate remote devices using keyboard and mouse
4. Support embedded audio input and output
5. Compliant with DP V1.3 standard, Compliance with HDCP1.2 standard-High bandwidth digital protection technology
6. High compatibility, can auto-match source and display device
7. Built-in automatic adjustment system, make the image smooth, clear and stable
8. Built-in ESD protection system
9. Simple to install, plug and play

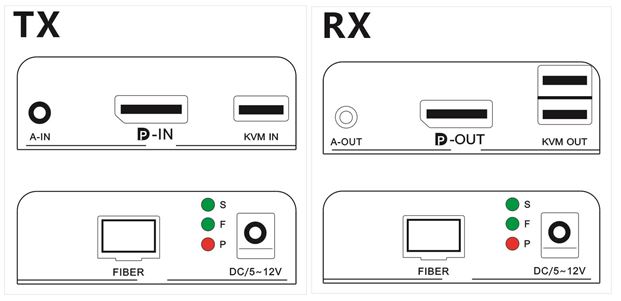

III. Product interface pictures
|
D-IN/OUT |
DP signal input/output |
|
Fiber |
connect Optical Fiber (LC) |
|
DC/5~12V |
|
|
A-IN/A-OUT |
Audio Input/Output |
|
KVM IN/KVM OUT |
Keyboard and Mouse Input/Output |
|
P |
unit power indicator light |
|
S |
DP signal indicator light |
|
F |
System status indicator light (flashing: in communication) |
IV. Specification
|
Description |
Parameter | |
|
Video |
Standards |
DP V1.4a; HDCP 1.2 |
|
Maximum pixel clock |
165MHz | |
|
Maximum data rate |
6.75Gbps | |
|
Resolution |
640×480@60Hz; 800×600@60Hz; 1024×768@60Hz; 1280×720@50Hz; 1280×720@60Hz; 1280×768@60Hz; 1280×800@60Hz; 1280×960@60Hz; 1280×1024@60Hz; 1360×768@60Hz; 1400×1050@60Hz; 1440×900@60Hz; 1600×1200@60Hz; 1680×1050 @60Hz; 1920×1200@60Hz; 1920×1080i@60Hz ; 1920×1080@50Hz; 1920×1080 @60Hz | |
|
Connector |
DP | |
|
Impedance |
100Ω | |
|
Suggest using less than 5 meters DP cables to connect | ||
|
Audio |
Interface |
3.5mm |
|
Signal type |
Embedded unidirectional stereo audio | |
|
USB |
USB IN |
USB-A Input |
|
USB OUT |
USB-A Output | |
|
Fiber |
Interface |
LC Port |
|
Fiber Model |
Single mode | |
|
wavelength |
Single mode 1310nm；1550nm | |
|
Transmission distance |
MAX up to 20KM | |
|
Other |
Power supply |
The power adapter: DC 5~12V/1A |
|
Power dissipation |
MAX 3W | |
|
Temperature |
Operating: -5℃ ~ +70℃ | |
|
Humidity |
Operating: 5% ~ 90% | |
|
Dimension |
95*73*26mm | |

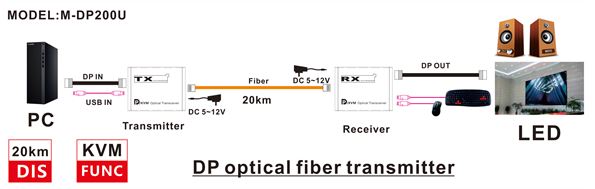

V. Installation Process:
1. Connect the input port of transmitter to the output port of the video
source with DP cable
2. Connect the output port of receiver to the display device with DP
cable
3. Connect the transmitter Fiber port to the receiver Fiber port using a
single Optical fiber
4. Connect the audio input and output with a 3.5mm male audio cable
5. Connect the keyboard and mouse signals from the transmitter to the
computer host or matrix/industrial computer with USB cable, connect
Keyboard and mouse to the receiver
6. Power on Transmitter and Receiver
VI. Package
1. DP transmitter x1 pcs
2. DP receiver x1 pcs
3. USB cable x1pcs
4. Power adapter x2 pcs
5. User manual x1 pcs
