4K Wireless HD Extender
【M-HW100】
Introduction
The 4K wireless HD extender transmits high-definition audio and video signals through 5.8G wireless signals, which can adapt to a variety of complex application environments. The device has excellent image processing and transmission capabilities, making the signal transmission more smooth and stable. It is a reliable, high-performance and efficient HDMI signal extension mode.
Features
1. Transmit HDMI video and audio signals over 5.8G wireless up
to 150m (492ft)
2. Support video resolution up to 4K@30Hz
3. Supports one TX and one RX, support one TX and four RX at
most
4. The special format H.264 is used to compress and decompress
the video, improve the transmission efficiency and make the
playback more smooth
5. Compliance with HDMI 1.3 and HDCP 1.2 standard
6. High compatibility, can auto-match source and display device
7. Built-in ESD protection system
8. Simple to install, plug and play

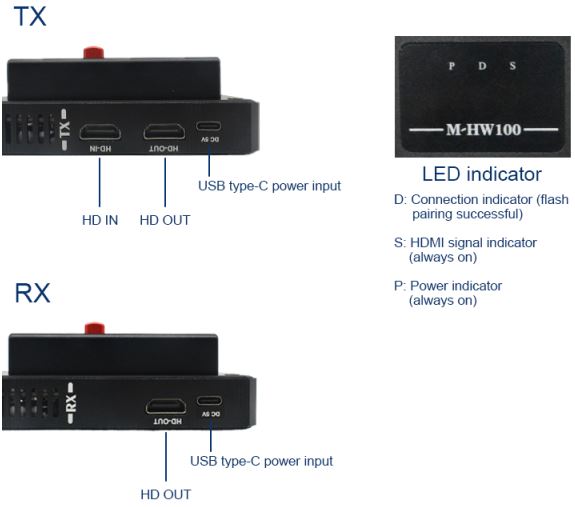

Panel Description
|
HDMI IN/OUT |
HDMI signal input/output |
|
DC/5V |
USB type-C power input |
|
D |
Connection indicator (flash pairing successful) |
|
S |
HDMI signal indicator (always on) |
|
P |
Power indicator(always on) |
Installation Process
1. Connect the HDMI signal source to the HD-IN port of transmitter
2. Connect the HD-OUT port of receiver to the display device (such as
HD TV, projector, etc.)
3. Connect the provided DC/5V power supplies to the power socket of
the transmitter and the receiver
Package
1. HDMI transmitter x1 pcs
2. HDMI receiver x1 pcs
3. Antenna x4 pcs
4. Power adapter x2 pcs
5. HDMI cable x 1 pcs
6. User manual x1 pcs

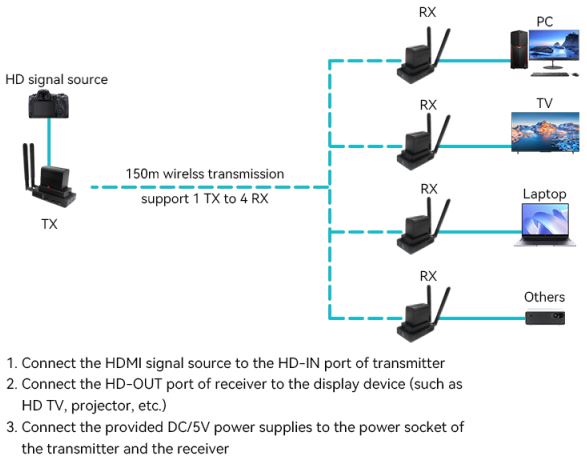

Connection
