Dual Audio/Video Balun

MB-DAVB MB-DAVB MB-DAVBMB-DAVB
Model:MB-DAVB*

2-CH Audio/Video Transmission

*Composite Video up to 1000ft(305m)

*Stereo Hi-Fi Audio up to 3250ft(1000m)

*Built-in TVS Protection

*Quicker moves, adds and changes
To Purchase Products
Product Information:

Overview

The Dual Audio-Video Balun(MB-DAVB) allows up to two composite video signals and up to two unbalanced audio signals to be transmitted via unshielded twisted pair (UTP) cable in a point-to-point connection.Used in pairs, the Dual Audio-Video Balun, allowing audio-video equipment to be connected via space-efficient and cost-effective Cat5e/6  twisted pair cable for commercial and residential hi-definition (HDTV) video applications and so on.



Applications

classroom video distribution, commercial and home audio/video systems, hospital video training, video conferencing, and video kiosks



Features & Benefits

Video up to 2,200 feet (670m) via Cat5e/6

Audio up to 3,250 ft (1,000m) via Cat5e/6

20 Hz to 20 kHz audio bandwidth

Cost-efficient cabling

Quicker moves, adds and changes



Quick Setup Guide:

Plug the RCA connectors of the transmit Balun into the Video and Audio outputs of the source component you wish to transmit. Plug the Video and Audio connectors from the receive Balun into your desired input component. Insert the CAT5 cable into both ends of the Baluns. You may use standard EIA 568A/B termination.

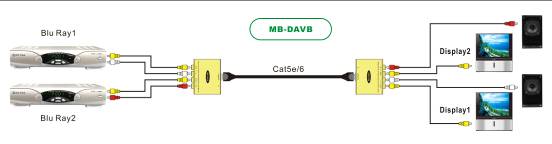

Typical Application



Specifications:

Environment

Composite video (NTSC, PAL, SECAM).and Stereo HI-FI audio.

Devices

DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks,monitors, DLP projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, video splitters, video converters and other composite video equipment.

Transmission

Transparent to the user.

                              Composite video

audio

           Bandwidth

Video: 60 MHz, 3 dB roll off

20 Hz to 20 KHz over the distance range

Maximum Input

1.1Vp-p

1.1Vp-p

Impedance

          75 ohms

600 ohms min

Insertion Loss

Less than 2 dB per pair over the frequency range from DC to 6 MHz

Less than 2 dB per pair over the frequency range

Return Loss

Better than 15 dB over the frequency range

Better than 15 dB over the frequency range

Common Mode Rejection Ratio

Greater than 40 dB over the frequency range

Greater than 40 dB over the frequency range

Max. Distance Color via

Cat 5E/6 UTP/STP Cable

2,200 ft (670 m)

3,250 ft (1,000 m)

Pin Configuration (RJ45)

Video: Pins 4(R) &5(T)

Video: Pins 7(R) &8(T)

Audio 1: Pins 1(R) & 2(T)

Audio 2: Pins 3(R) & 6(T)

Cable: Cat 5E/6 UTP/STP

24 AWG or lower solid copper twisted pair wire

Impedance: 100 ohms at 1 MHz Maximum capacitance: 20 pf/ft

Attenuation: 6.6 dB/1,000 ft at 1 MHz

Connectors

Three RCA-F connectors: Video (yellow) & stereo audio (red, white)

One RJ45 for Cat 5E/6

Temperature

Operating: 0° to 55°C

Storage: -20° to 85°C

Humidity: Up to 95% non-condensing

Enclosure

Aluminum alloy

Dimensions(packaging)

155mm*80mm*30mm (including one pair of Balun)

Weight(packaging)

260g



NOTE: Baluns are interchangeable for transmit or receive functions.
