50m USB2.0 Extender
【M-U50】

I. Introduction

This product is comprise by transmitter (TX) and receiver (RX). It can transmit HD video signals/mouse and keyboards over a coaxial line or twisted-pair. The transmission distance can be up to 50 meters.

The device can be widely used in monitoring field, computer field, education, bank and securities system, and has excellent image processing, and transmission capabilities, making the signal transmission more smooth and stable.

II. Features:

1. Breaking the distance restriction of USB camera(resolution up to 1080P) on USB cable

2. transmit HD video signals/mouse and keyboards over a coaxial line or twisted-pair

3. MAX distance can be up to 50 meters

4. MAX resolution is 1080P@60Hz

5. USB High Speed 2.0 Protocol, no delay to ensure its stability and fluidity

6. Simple to install, plug and play, compatible with any system

III. Product interface pictures

TX

RX

IV. Specification

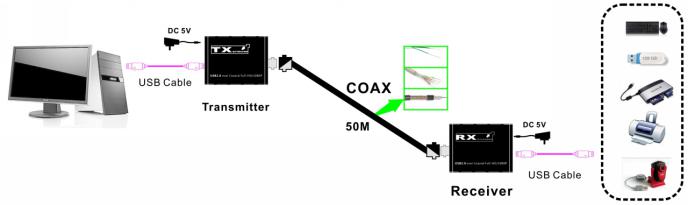

V. Installation Process:

1. Connect the transmitter (TX) to the computer, player, etc.

2. Connect the USB signal source to the receiver (RX), connect the USB camera, U disk, USB printer, mouse, keyboard, etc.

3. Connect the coaxial interface between the sender and the receiver with one coaxial cable (if using Cat5/6, please use the configured BNC connector)

4. Power on Transmitter and Receiver

VI. Package

1. USB Transmitter×1pcs

2. USB Receiver×1pcs

3. Power adapter×2pcs

4. USB-B cable×1pcs

5. BNC - twisted-pair connector×2pcs

6. User Manual×1pcs
